Dormer P81716.0X6.0 6814176 rotary burr with 60° countersink angle, 16.00 mm cutting diameter, and 6.0 mm connection diameter. Solid carbide construction for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer P81716.0X6.0 6814176 rotary burr with 60° countersink angle, 16.00 mm cutting diameter, and 6.0 mm connection diameter. Solid carbide construct
Brand: Dormer Pramet
Price: 41.98 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814176

BRAND

Dormer Pramet

SKU

6083839

WEIGHT

0.099 lb

UOM

each

$41.98 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Countersinking 60°

Basic Standard

DORMER

Burr Shape

J - 60° Countersink Shape

Burr Type Code (BTC)

Double Cut Geometry

Coating

Bright

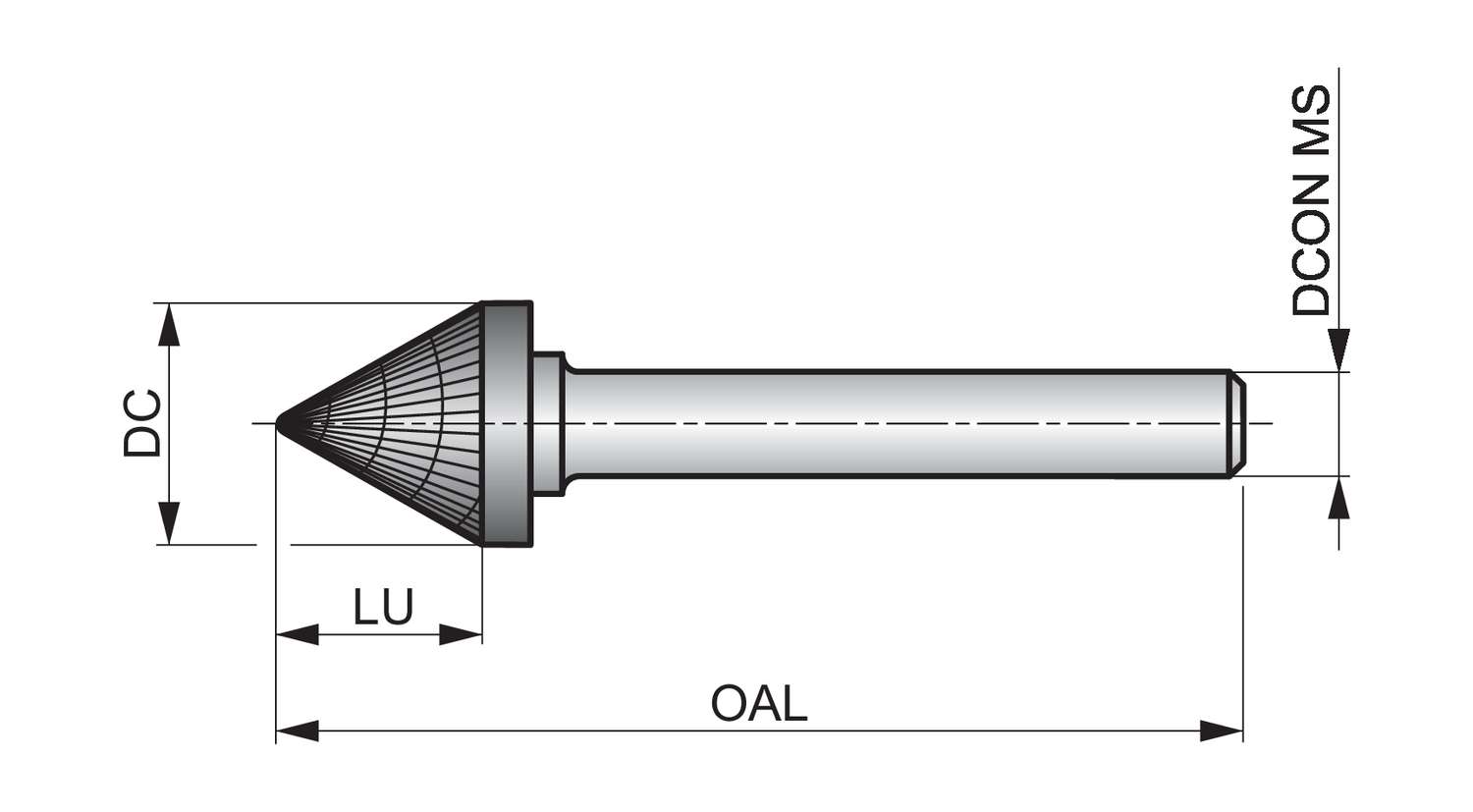

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.6299

Cutting diameter - millimeter (DC)

EDP number

46814176

Material

MID number

6814176

Ordering code ANSI

P81716.0X6.0

Overall length - inch (OAL)

2.4803

Overall length - millimeter (OAL)

Point Angle (SIG)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

14.5

With a 60 degree countersink shape (Shape J) for de-burring chamfers and weld preparations, P817 rotary carbide burrs are manufactured from premium carbide material and will give you great performance and longer tool life at high speeds.

The DC geometry breaks chips more effectively so you get better control when de-burring by hand, whilst the bright finish prevents workpiece material from sticking to the tool so you get a cleaner result.

P817 rotary burrs come with a hardened and toughened steel shank, for extra rigidity and strength to reduce vibration and further extend tool life
