Dormer P8316.0X6.0 6814202 rotary burr, cylinder shape without endcut, 6.00mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction for non-ferrous metals. DORMER standard, h6 shank tolerance.
MODEL 6814202
$16.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
A - Cylinder Shape without endcut
Burr Type Code (BTC)
Aluminium Cut Geometry
Coating
Bright

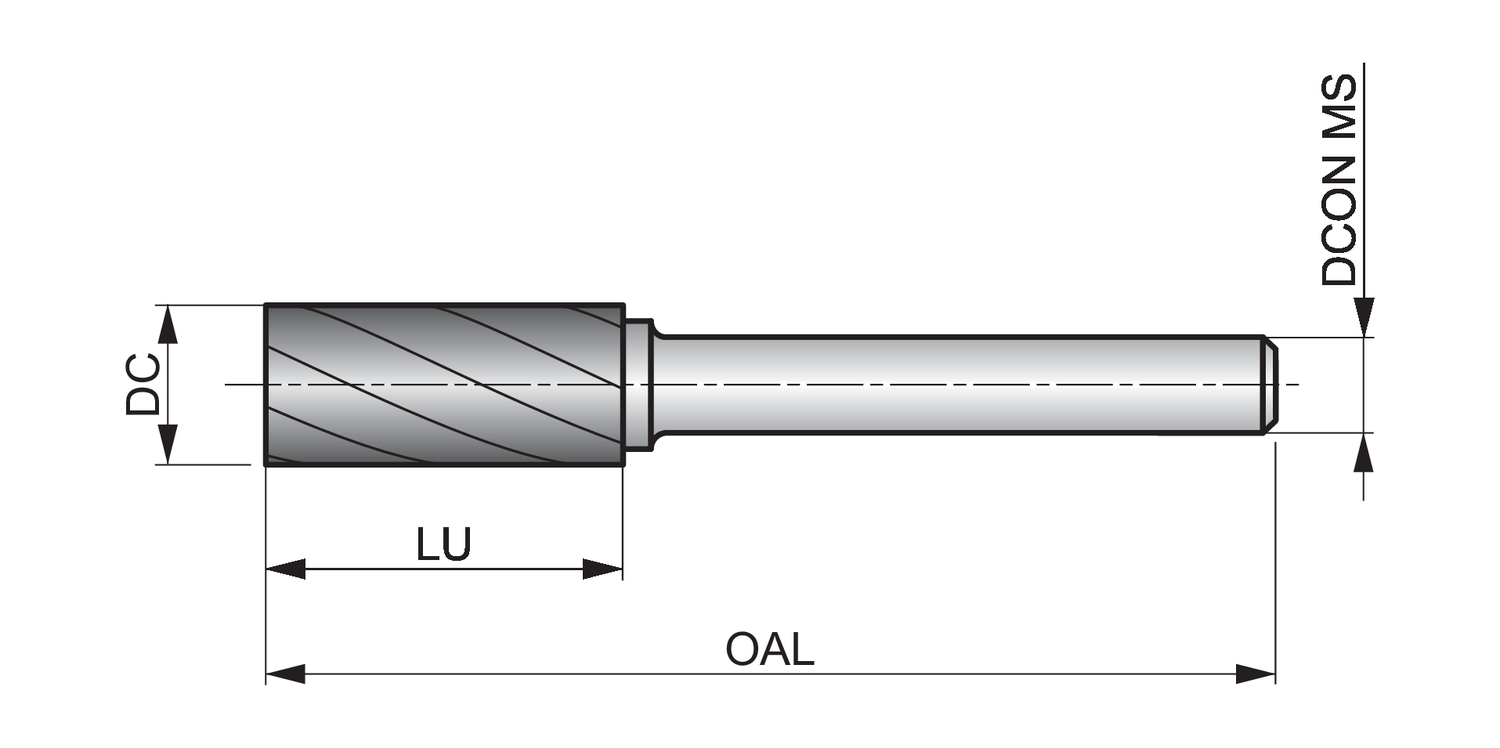

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
EDP number
46814202
Material
HM
Material application
N - Non-ferrous metals
MID number
6814202
Ordering code ANSI
P8316.0X6.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Usable Length - millimeter (LU)
18
P831 rotary carbide burrs are Shape A (cylinder without endcut) and should be used for general de-burring of plain surfaces.
The AL geometry is designed to maximize material removal when machining aluminium, whilst the premium carbide material used for manufacture gives great performance and longer tool life at high speeds.
The bright finish will stop workpiece material from sticking to the cutting edges of the tool so you get a clean, smooth result.
P832 rotary burrs come with a hardened and toughened steel shank for greater strength and rigidity.
This helps reduce vibration and further extends the life of the tool
