Dormer Pramet P8336.0X6.0 6814205 cylinder with endcut rotary burr, 6.00mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction for non-ferrous metals. DORMER standard, h6 shank tolerance. Suitable for deburring and finishing applications on aluminum, brass, and other non-ferrous materials.
MODEL 6814205
$18.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
B - Cylinder Shape with endcut
Burr Type Code (BTC)
Aluminium Cut Geometry
BurrEndShot_DICT_SEL
End Cut Burr End
Coating
Bright

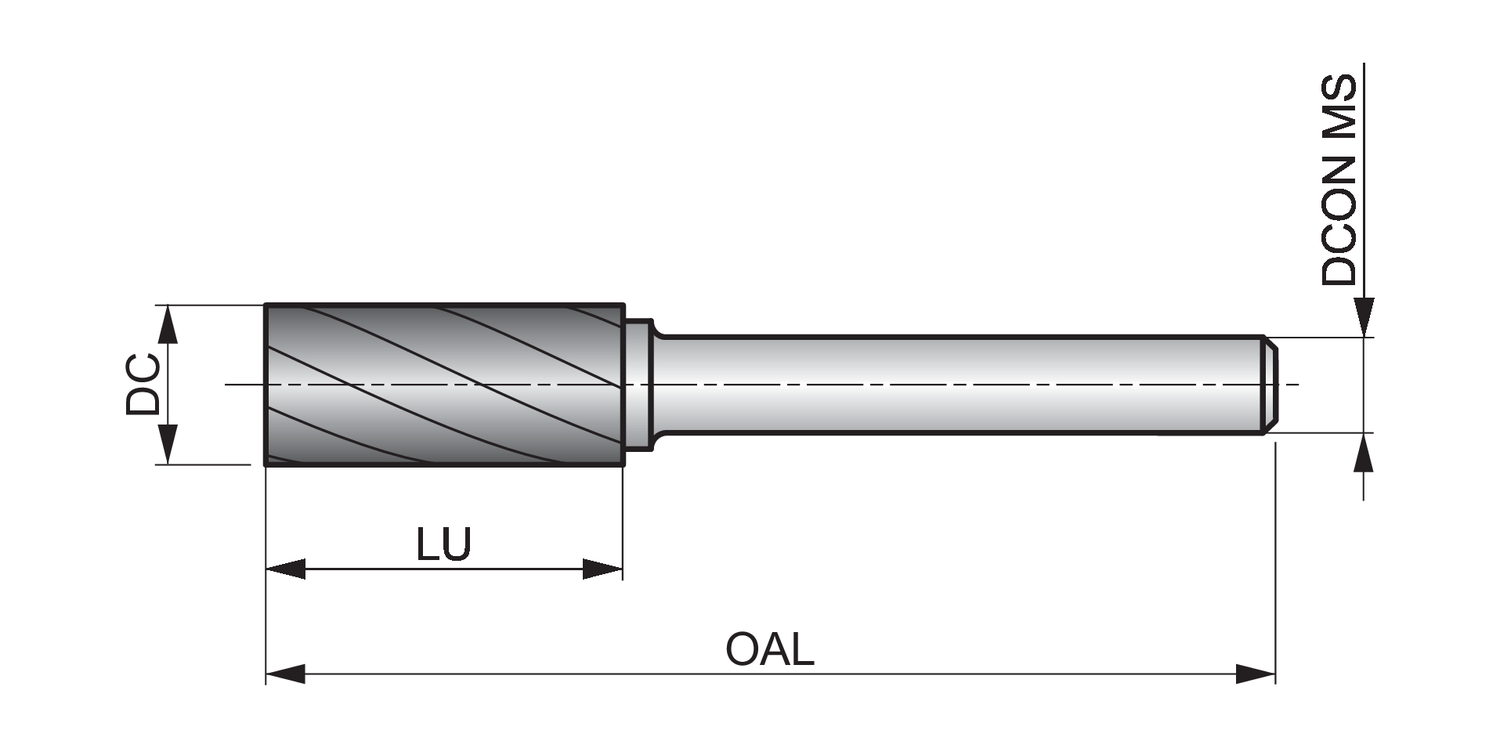

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
EDP number
46814205
Material
HM
Material application
N - Non-ferrous metals
MID number
6814205
Ordering code ANSI
P8336.0X6.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Usable Length - millimeter (LU)
18
P833 rotary carbide burrs from Dormer are Shape B burrs (cylinder with endcut) and can be used for de-burring into 90 degree corners.
The tools are manufactured from premium carbide material for superior performance and longer tool life at high speeds and have a geometry designed for maximum removal when machining aluminium.
With a toughened and hardened steel shank for extra strength and rigidity which reduces vibration so the tool lasts longer, P833 rotary burrs have a bright finish for cleaner results by ensuring workpiece material does not stick to the cutting surfaces of the burr
