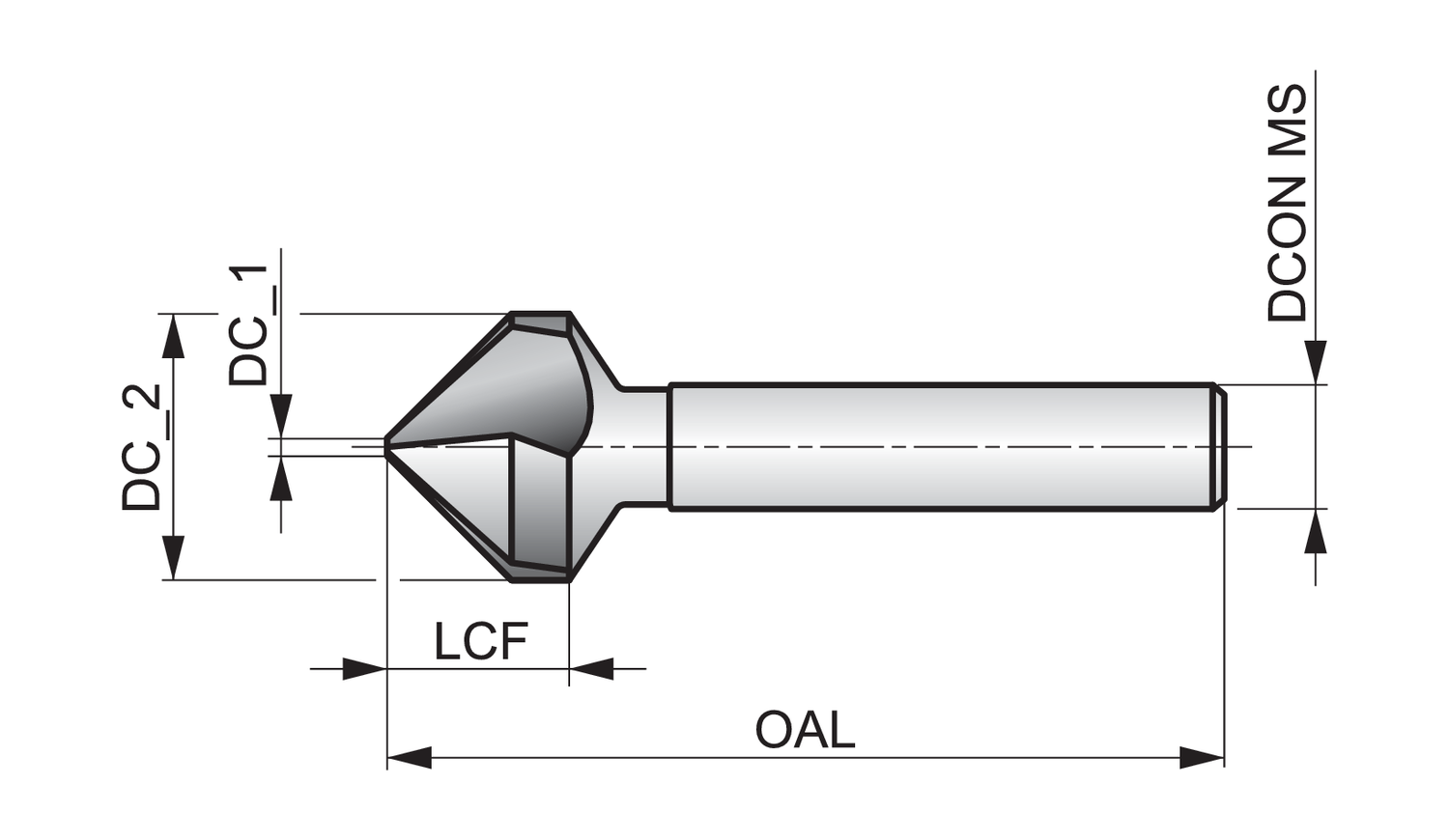

Image for Illustration purposes only. Actual product may vary
Dormer G4006.3 5979252 Countersink for High Precision Chucks - 90° 3FL 6.30 mm
MODEL 5979252
$125.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright
Connection diameter - inch (DCON MS)
0.1969
Connection diameter - millimeter (DCON MS)
5
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter step - millimeter
1.5
EDP number
128787
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
5
Material
HM
MID number
5979252
Ordering code ANSI
G4006.3
Overall length - inch (OAL)
1.7717
Overall length - millimeter (OAL)
45
Point Angle (SIG)
90
Shank
Cylindrical shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, solid carbide with standard bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium, copper or copper alloys and polymers, titanium or titanium alloys, chilled, hardened cast-iron.
