Image for Illustration purposes only. Actual product may vary
Dormer H85112.5 7833298 Hydra Body 1.5 x D
MODEL 7833298
$354.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Nickel Plated
Connection diameter - inch (DCON MS)
0.6299
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Drill Diameter - mm
16
Drill Length
Short
EDP number
7833298
Hand (Cutting direction)
Right
Length to Depth Ratio
1.5
Material
HSS
MID number
7833298
Ordering code ANSI
H85112.5
Overall length - inch (OAL)
3.4961
Overall length - mm
88.8
Shank
Hydra shank Cylindrical /ISO 9766
Shank length - inch (LS)
1.8898
Shank length - millimeter (LS)
48
Surface color
Bright Silver
Usable length (ULDR)
1.5
Usable Length - inch (LU)
1.0157
Usable Length - mm
25.8

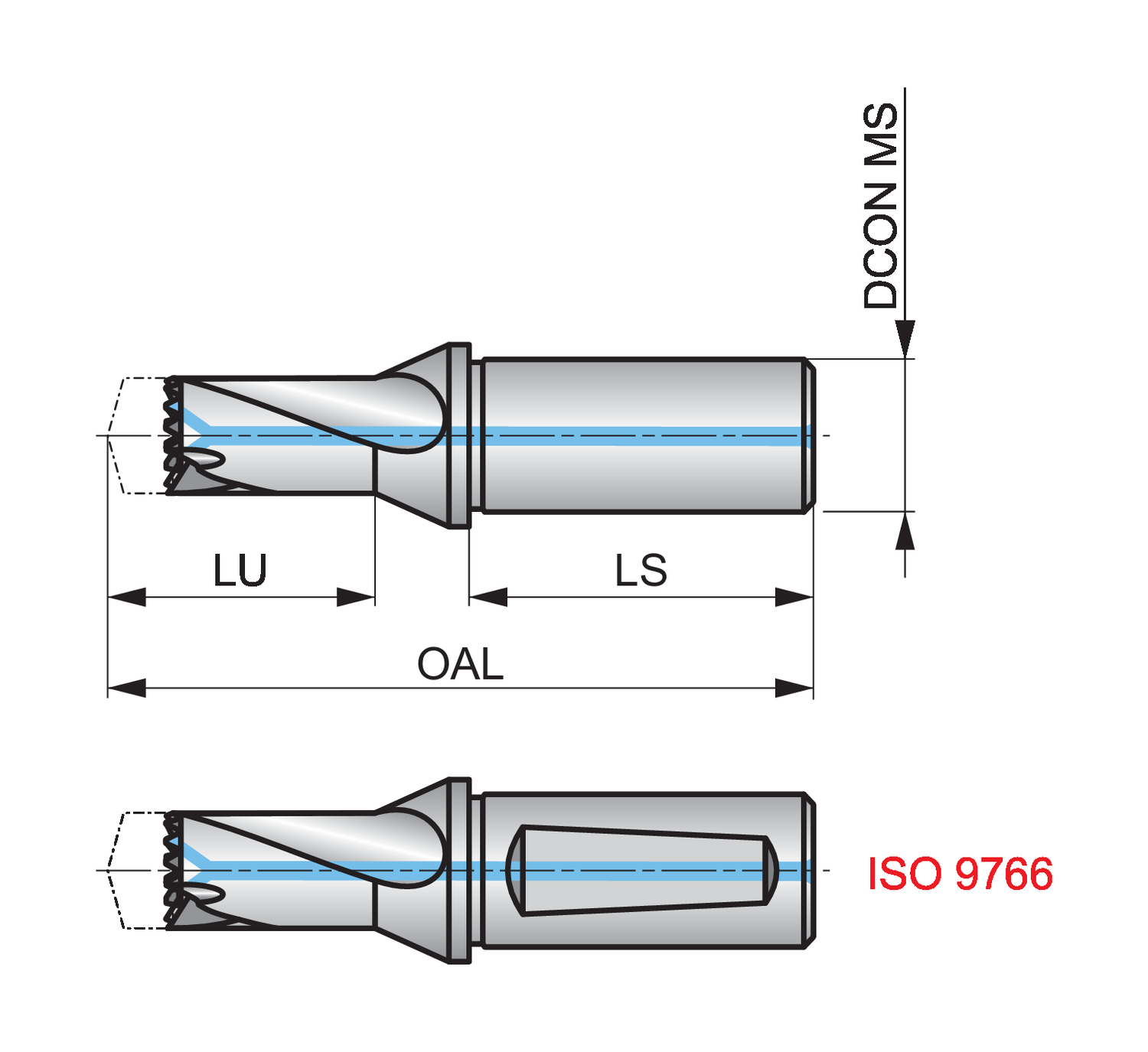

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 12.5mm with an overall length of 88.8mm and flute length of 25.8mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 12.5 up to 12.9mm
