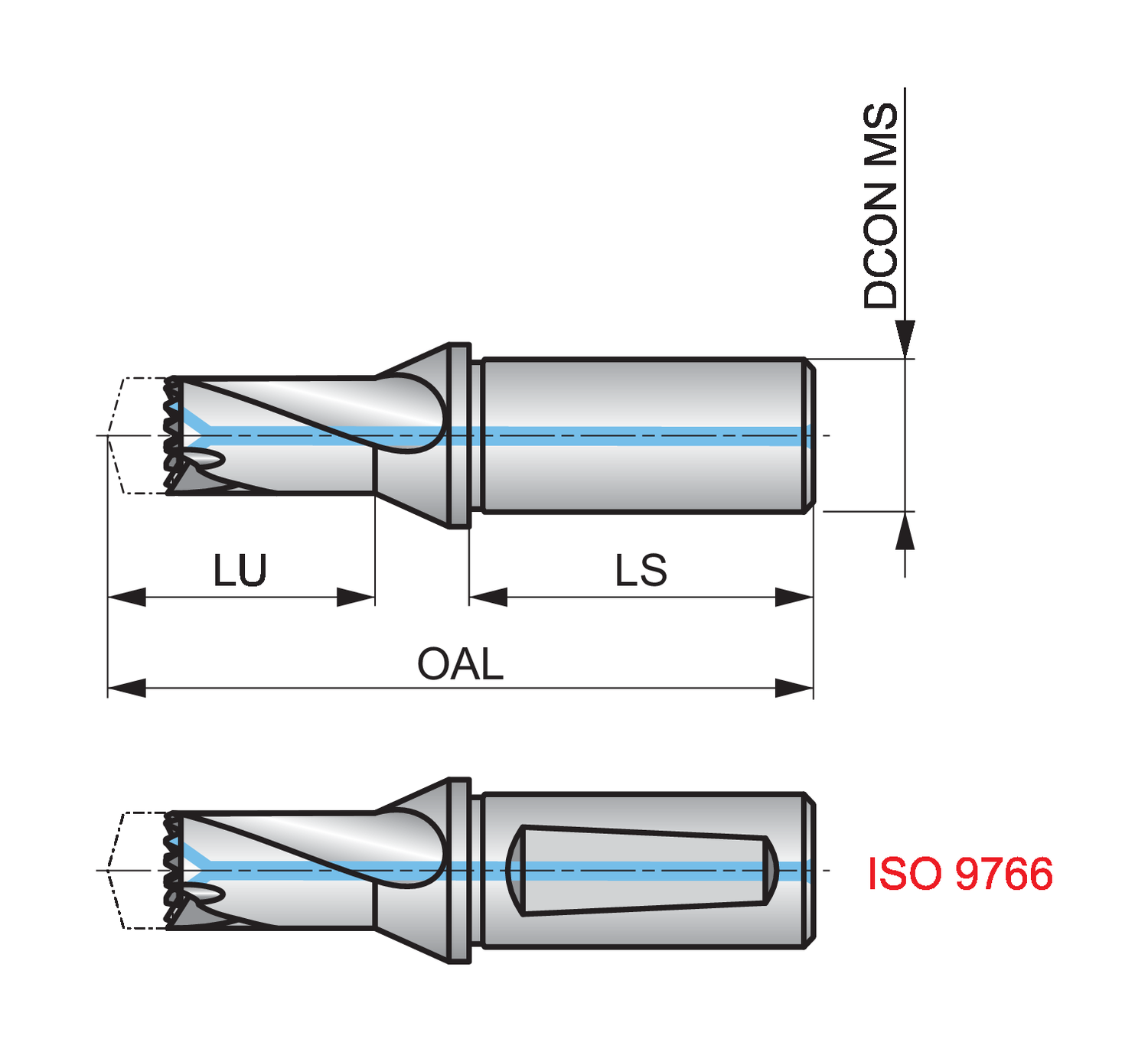

Dormer H85119.0 7833340 Hydra Body 1.5 x D short taper reamer, 25mm cutting diameter, 111.4mm overall length, 40.4mm usable length, 1.5 length-to-depth ratio. High Speed Steel (HSS) construction with Bright Silver finish, right hand cutting direction, and coolant-through capability. Shank length 56mm with h6 connection diameter tolerance.

Basic Standard

DORMER

Coating

Nickel Plated

Connection diameter - inch (DCON MS)

0.9843

Connection diameter tolerance machine side (TCDCONMS)

h6

Coolant supply property (CSP)

1

Drill Diameter - mm

25

Drill Length

Short

EDP number

7833340

Hand (Cutting direction)

Right

Length to Depth Ratio

1.5

Material

HSS

MID number

7833340

Ordering code ANSI

H85119.0

Overall length - inch (OAL)

4.3858

Overall length - mm

111.4

Shank

Hydra shank Cylindrical /ISO 9766

Shank length - inch (LS)

2.2047

Shank length - millimeter (LS)

56

Surface color

Bright Silver

Usable length (ULDR)

1.5

Usable Length - inch (LU)

1.5906

Usable Length - mm

40.4
