Dormer H851217.0 7833367 Hydra Body 12 x D
MODEL 7833367
$1,518.24 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Nickel Plated
Connection diameter - inch (DCON MS)
0.7874
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Drill Diameter - mm
20
EDP number
7833367
Hand (Cutting direction)
Right
Length to Depth Ratio
12
Material
HSS
MID number
7833367
Ordering code ANSI
H851217.0

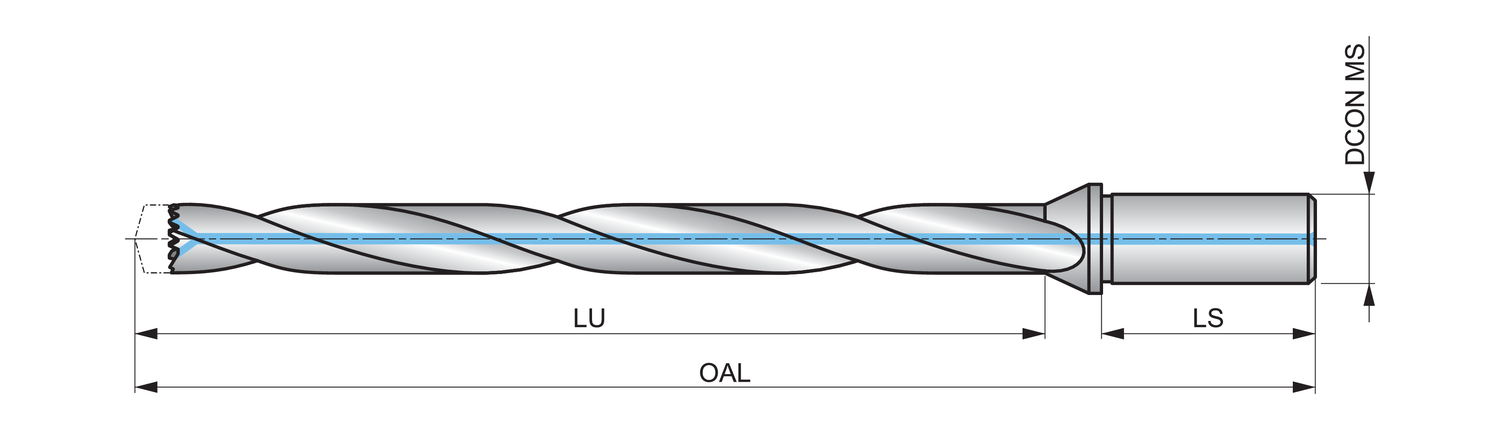

Overall length - inch (OAL)
10.8268
Overall length - mm
275
Shank
Hydra shank - Cylindrical
Shank length - inch (LS)
1.9685
Shank length - millimeter (LS)
50
Surface color
Bright Silver
Usable length (ULDR)
12
Usable Length - inch (LU)
8.0315
Usable Length - mm
204
DOR Replaceable head drill body HYDRA with cylindrical shank with flange, size 17.0mm with an overall length of 275mm and flute length of 204mm according to DORMER standard for 12xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 16.6 up to 17.5mm
