Dormer H85317/32 5987992 Coolant Body 3 x D Short 17/32 inch
MODEL 5987992
$354.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DORMER
Coating
Nickel Plated

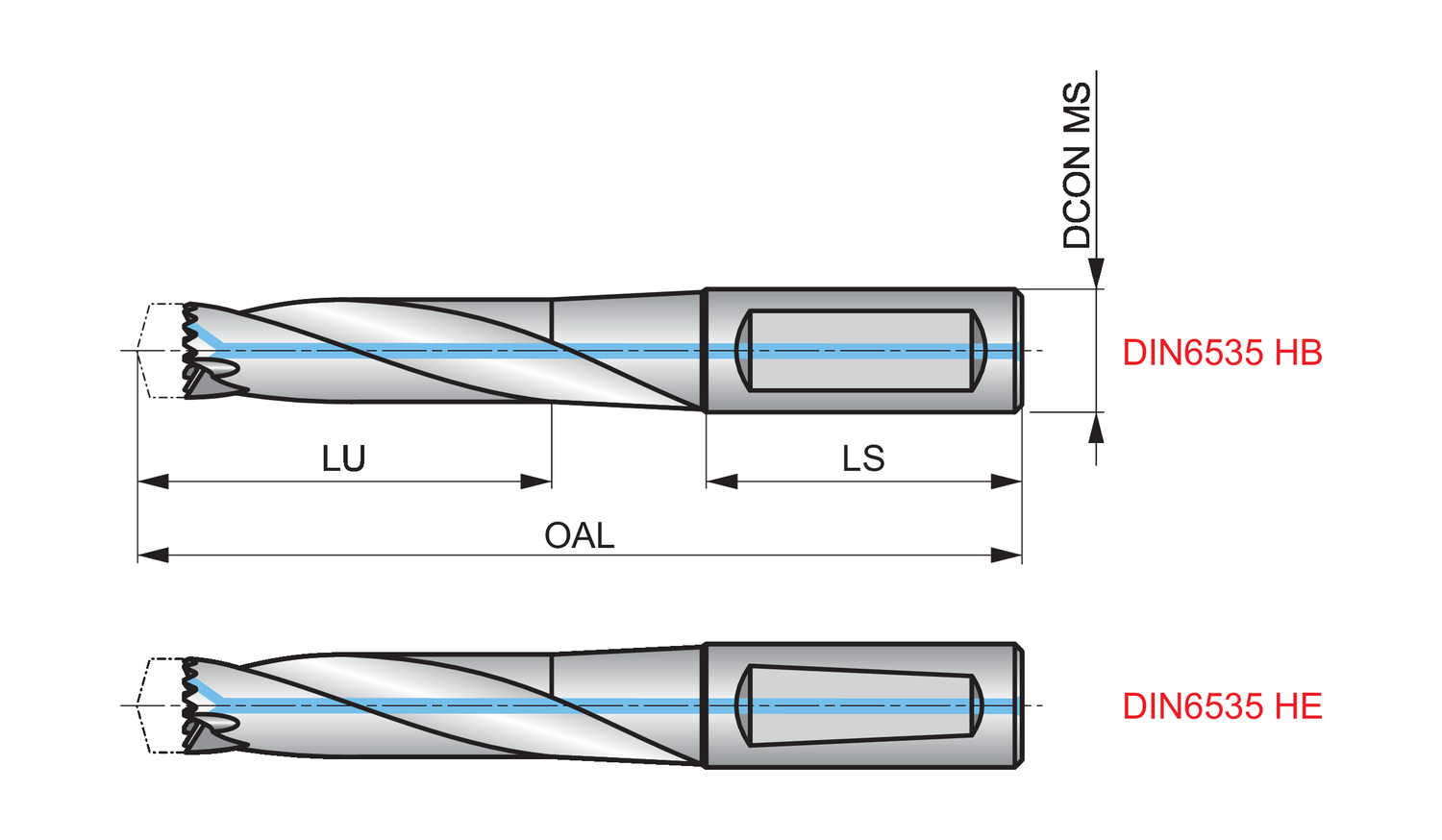

Connection diameter - inch (DCON MS)
0.625
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Drill Diameter - fractional inch
5/8
Drill Diameter - mm
15.88
Drill Length
Short
EDP number
33067
Hand (Cutting direction)
Right
Length to Depth Ratio
3
Material
HSS
MID number
5987992
Ordering code ANSI
H85317/32
Overall length - inch (OAL)
4.3307
Overall length - mm
110
Shank
Cylindrical shank DIN 6535 HE / HB
Shank length - inch (LS)
1.8898
Shank length - millimeter (LS)
48
Surface color
Bright Silver
Usable length (ULDR)
3
Usable Length - inch (LU)
1.8504
Usable Length - mm
47
H853 Hydra drill bodies with coolant feed are short drill bodies designed to fit to R950, R960 and R970 Hydra drill heads.
Tooling needs can be greatly reduced as several different head diameters will fit onto one body, whilst the common shank size gives you the option of versatile tool holding.
Removing one drill head and installing another is quick and easy, and can be done without removing the body from the machine.
The internal coolant holes align perfectly with the interchangeable drill heads for efficient cooling, no matter the head diameter.
H853 Hydra drill bodies are of high quality and will give consistent performance even after many head changes
