5988797

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer H85816.0 5988797 replaceable drill head body, 16mm diameter, 8xD long length, 211.5mm overall length, 141.5mm usable length, 50mm shank length, h6 shank tolerance, right hand cutting, coolant through capability, HSS construction, bright silver finish. For use with compatible Dormer Hydra drill heads.

MODEL 5988797

SKU

6084501

WEIGHT

0.787 lb

UOM

each

$861.36 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

Nickel Plated

Connection diameter - inch (DCON MS)

0.7874

Connection diameter tolerance machine side (TCDCONMS)

h6

Coolant supply property (CSP)

1

Drill Diameter - mm

20

Drill Length

Long

EDP number

18682

Hand (Cutting direction)

Right

Length to Depth Ratio

8

Material

HSS

MID number

5988797

Ordering code ANSI

H85816.0

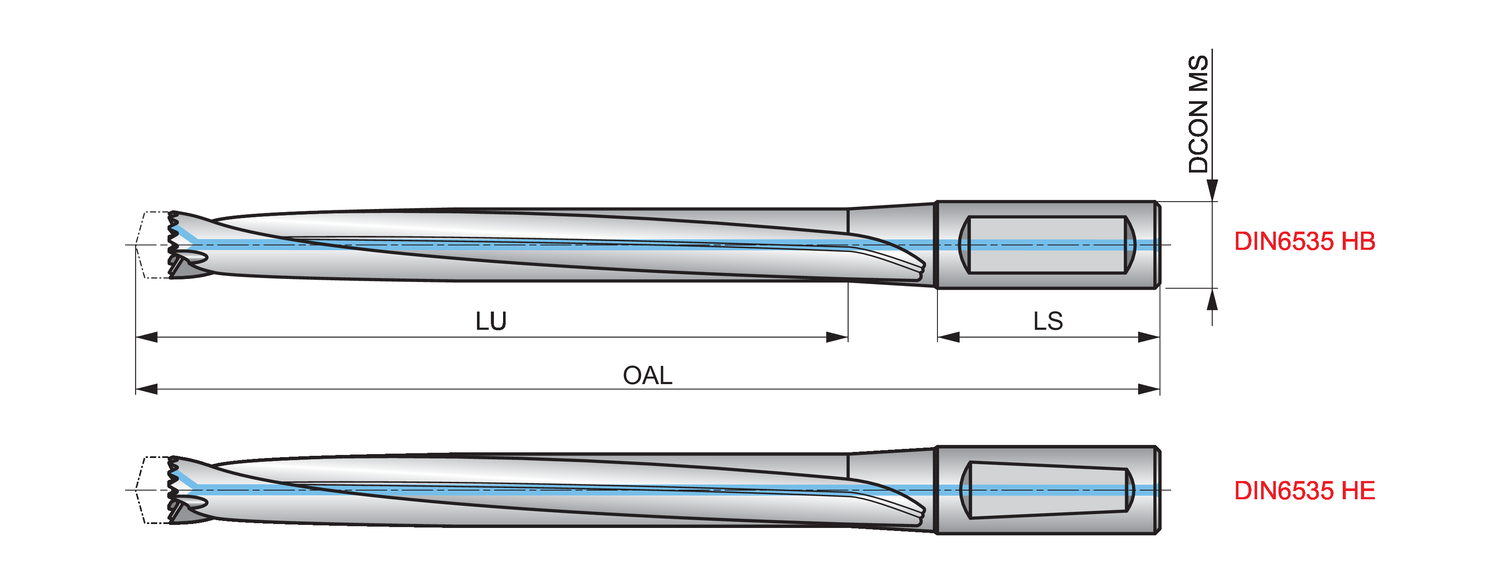

Overall length - inch (OAL)

8.3268

Overall length - mm

211.5

Shank

Cylindrical shank DIN 6535 HE / HB

Shank length - inch (LS)

1.9685

Shank length - millimeter (LS)

50

Surface color

Bright Silver

Usable length (ULDR)

8

Usable Length - inch (LU)

5.5709

Usable Length - mm

141.5

Part of Dormer’s Hydra range of interchangeable drill heads and bodies, the long length H858 Hydra drill body has a common shank size for versatile tool holding options and will give high performance, even after many head changes.

The internal coolant holes align perfectly with the Hydra drill heads for efficient cooling and changing a drill head is both quick and easy and can even be done without removing the body from the machine.

For even more versatility and reductions in tooling needs, several diameters of Hydra head will fit with one size body.

Please see R950, R960 and R970 Hydra drill heads to fit to this body
