Dormer H85832.0 6111421 Coolant Body 8 x D Long 32.00 mm
MODEL 6111421
$1,011.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Nickel Plated
Connection diameter - inch (DCON MS)
1.2598
Connection diameter tolerance machine side (TCDCONMS)
h6
Coolant supply property (CSP)
1
Drill Diameter - mm
32
Drill Length
Long
EDP number
46111421
Hand (Cutting direction)
Right
Length to Depth Ratio
8
Material
HSS
MID number
6111421
Ordering code ANSI
H85832.0

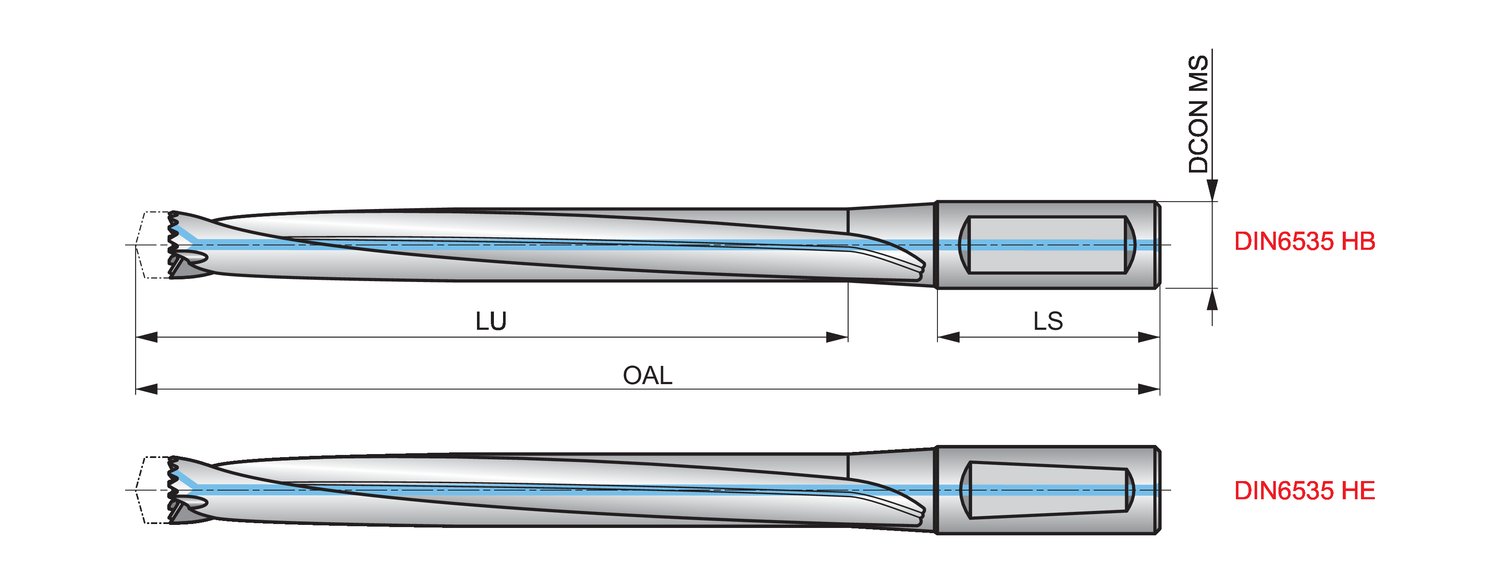

Overall length - inch (OAL)
14.0354
Overall length - mm
356.5
Shank
Cylindrical shank DIN 6535 HE / HB
Shank length - inch (LS)
2.3622
Shank length - millimeter (LS)
60
Surface color
Bright Silver
Usable length (ULDR)
8
Usable Length - inch (LU)
10.689
Usable Length - mm
271.5
Part of Dormer’s Hydra range of interchangeable drill heads and bodies, the long length H858 Hydra drill body has a common shank size for versatile tool holding options and will give high performance, even after many head changes.
The internal coolant holes align perfectly with the Hydra drill heads for efficient cooling and changing a drill head is both quick and easy and can even be done without removing the body from the machine.
For even more versatility and reductions in tooling needs, several diameters of Hydra head will fit with one size body.
Please see R950, R960 and R970 Hydra drill heads to fit to this body
