301JDN53 6480747 Black Jobber Drill N53
MODEL 6480747
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$1.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Steam Tempered

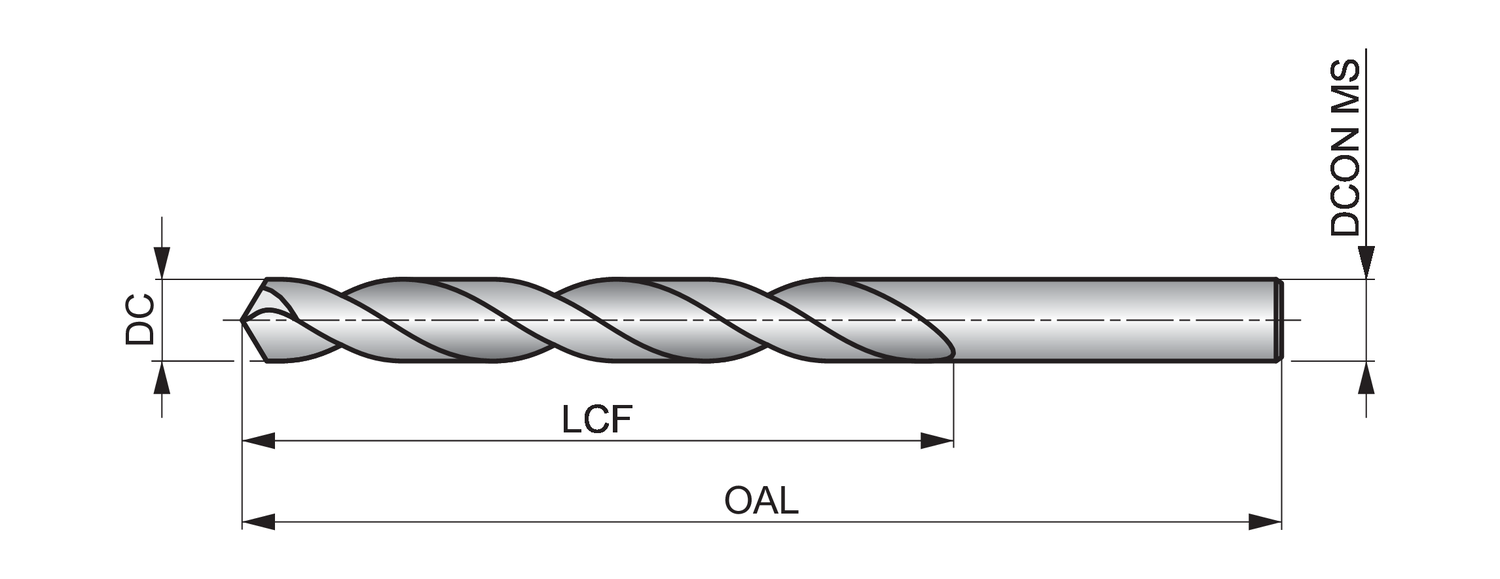

Connection diameter - inch (DCON MS)
0.0595
Cutting diameter (wire gauge size) (DC)
N53
Cutting diameter - inch (DC)
0.0595
Cutting diameter - millimeter (DC)
1.51
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
7/8
Length chip flute - inch (LCF)
0.875
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
1.7/8
Overall length - inch (OAL)
1.875
Overall length - millimeter (OAL)
47.63
Point Angle (SIG)
118
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
4
Designed for portable and machine drilling under a wide range of operating conditions in various materials.
Surface treated with a steam tempered finish for abrasion resistance and improved coolant adherence.
