R511.1/32 5998978 Taper Length Drill Long ANSI 1.1/32 inch
MODEL 5998978
$165.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

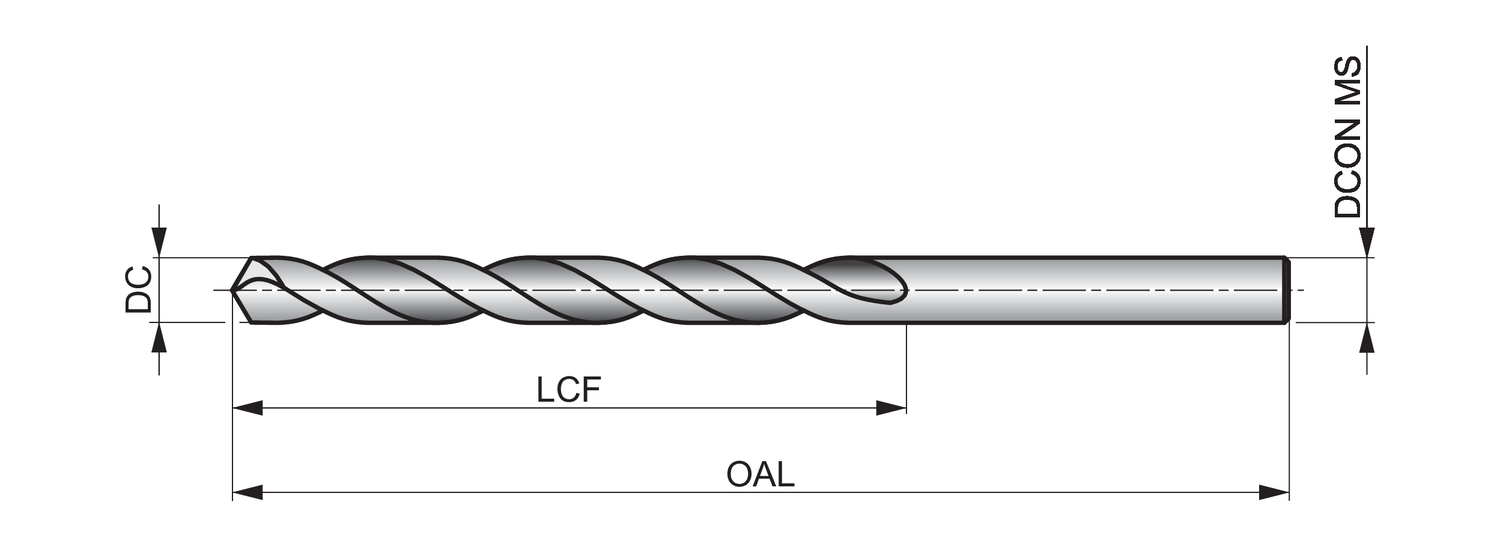

Cutting diameter - fractional inch (DC)
1.1/32
Cutting diameter - inch (DC)
1.0313
Cutting diameter - millimeter (DC)
26.2
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
6.1/2
Length chip flute - inch (LCF)
6.5
Material
HSS
Overall length - fractional inch (OAL)
11.1/8
Overall length - inch (OAL)
11.125
Overall length - millimeter (OAL)
282.58
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
R51 taper length drill bits are available in an extensive range of fractional sizes from 1/64 inch up to 1–3/4 inches.
The bright finish prevents workpiece material from sticking to the cutting surfaces of the drill, giving cleaner, more accurate holes, whilst the conventional 118 degree point provides strength and easy re-grinding.
Manufactured from High Speed Steel, the tools are suitable for drilling a variety of materials including steel, stainless steel and aluminum.
R51 taper length series drills are recommended for drilling deeper holes and in applications where increased reach is required.
