S2091.3/16 6000476 Taper Shank Drill 1.3/16 inch
MODEL 6000476
$270.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Steam Tempered

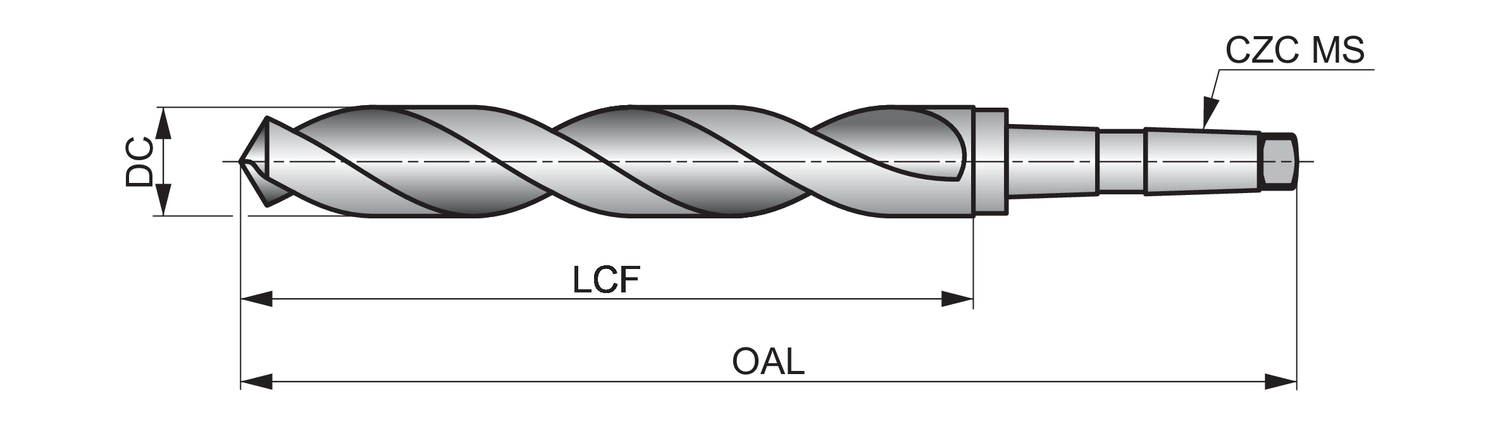

Connection (shank) description
Morse Taper Shank
Connection size code machine side (CZC MS)
3
Cutting diameter - fractional inch (DC)
1.3/16"
Cutting diameter - inch (DC)
1.1875
Cutting diameter - millimeter (DC)
30.16
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
7.3/8
Length chip flute - inch (LCF)
7.375
Material
HSS
Overall length - fractional inch (OAL)
12
Overall length - millimeter (OAL)
304.8
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
S209 reduced taper shank drills are very versatile and can be used in machine applications where the drill is held directly in the spindle.
The “S” stands for the smaller taper type. They are available from 1/2 inch to 2 inches and have a conventional 118 degree point for strength and easy re-grinding, and a steam oxide finish which prevents workpiece material from sticking to the cutting edges of the tool for clean and accurate holes.
Made from premium High Speed Steel, S209 reduced taper shank drills can be used for drilling many materials including steel, aluminum and stainless steel.
