500-613/32 6001146 Oxide 135° Extra Length Aircraft Extension Drill 13/32 inch
MODEL 6001146
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$34.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
NAS907
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank
Cutting diameter - fractional inch (DC)
13/32"
Cutting diameter - inch (DC)
0.4063
Cutting diameter - millimeter (DC)
10.32
Drill Length
Long
Hand (Cutting direction)
Right

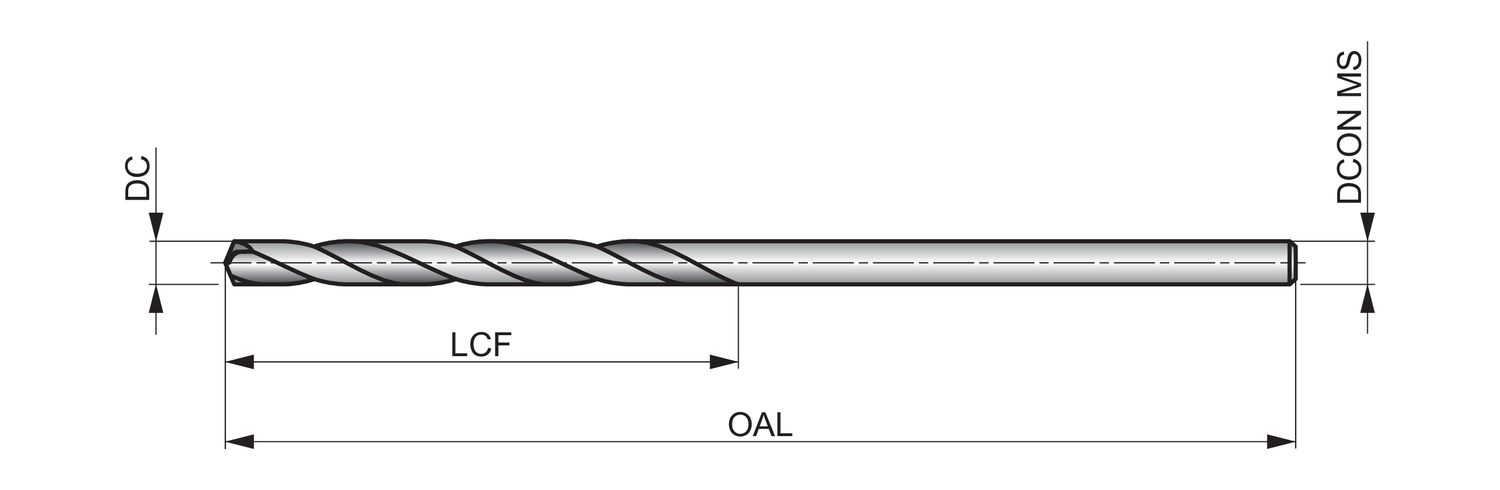

Length chip flute - fractional inch (LCF)
3.7/8
Length chip flute - inch (LCF)
3.875
Material
HSS
Overall length - fractional inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
500-6 drill bits are manufactured to NAS907 type B standard and have a long overall length (6”) with short flute – ideal for stable drilling in areas which are difficult to reach. They are manufactured from premium High Speed steel and can be used for drilling steels, aluminum, stainless steel and a range of other materials.
The steam oxide finish stops workpiece material from sticking to the cutting surfaces of the tool so you get an accurate and clean finish, whilst, as an aid to self-centering and to reduce the push force needed, the tools have a 135 degree split point.
500-6 aircraft extension drills are available in many fractional sizes from 3/64” to 1/2" inch.
