Precision Twist Drill 502-6V, part number 6001339, Letter V (0.3772") HSS aircraft extension drill with black oxide finish and 135° point. NAS907 standard, right-hand cut, cylindrical shank. 3-5/8" flute length, 6" overall length, 4" usable length. For aerospace holemaking in steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys.
MODEL 6001339
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$42.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
NAS907
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

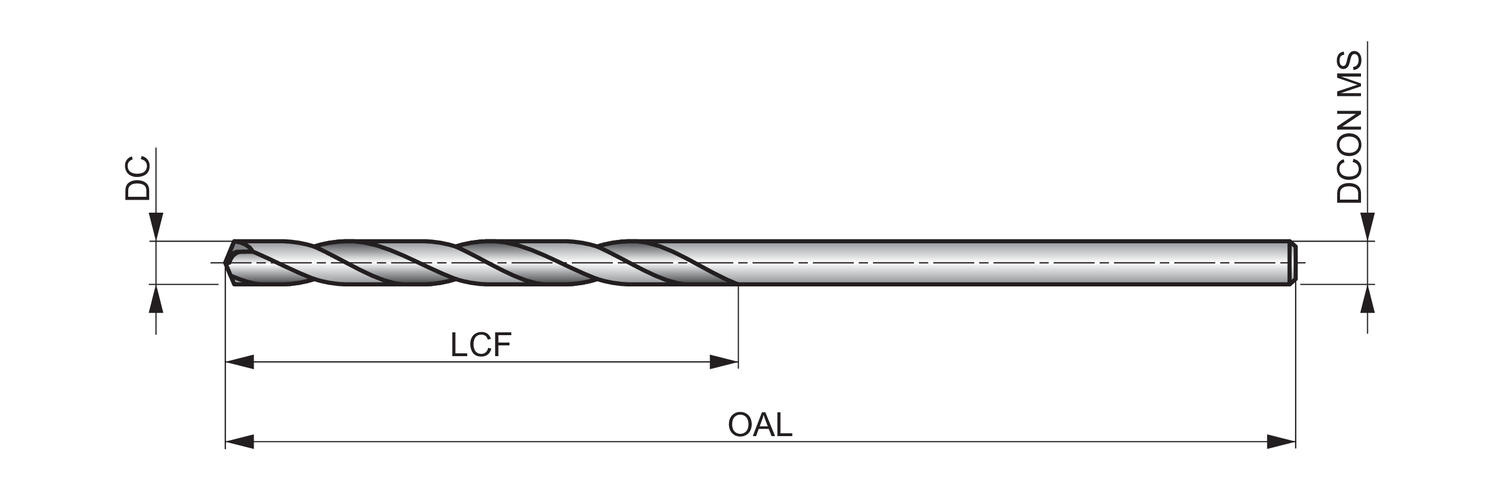

Cutting diameter - imperial letter (DC)
V"
Cutting diameter - inch (DC)
0.3772
Cutting diameter - millimeter (DC)
9.58
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3.5/8
Length chip flute - inch (LCF)
3.625
Material
HSS
Overall length - fractional inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
502-6 Aircraft extension drill bits conform to NAS907 type B standard and have a long overall length (6”) with short flutes, recommended for stable drilling in hard to reach areas.
The drills have a 135 degree split point which helps with self-centering when used by hand – no more wandering all over the workpiece – and reduces the push force required.
Manufactured from premium High Speed Steel (HSS), the drill bits can be used in many materials including aluminum, steels and stainless steel and have a steam oxide finish which ensures a more accurate and cleaner hole by preventing workpiece material from sticking to the cutting surfaces of the tool.
502-6 aircraft extension drill bits are available in a range of letter sizes from A to Z.
