Precision Twist Drill R561 6000010 1" (25.4 mm) HSS reduced shank drill with bright/steam tempered finish and 118° point. 1/2" reduced cylindrical shank, 3" flute length, 6" overall length, ANSI standard, right-hand cut. Jobber length, standard spiral.

Name: Precision Twist Drill R561 6000010 1" (25.4 mm) HSS reduced shank drill with bright/steam tempered finish and 118° point. 1/2" reduced cylindrical sha
Brand: Precision Twist Drill
Price: 89.55 USD
Availability: InStock
Rating: 5.0 (1 reviews)

MODEL 6000010

BRAND

Precision Twist Drill

SKU

6086880

WEIGHT

0.690 lb

UOM

each

$89.55 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 118°

Basic Standard

ANSI

Coating

Bright/ST

Connection (shank) description

Reduced Cylindrical shank

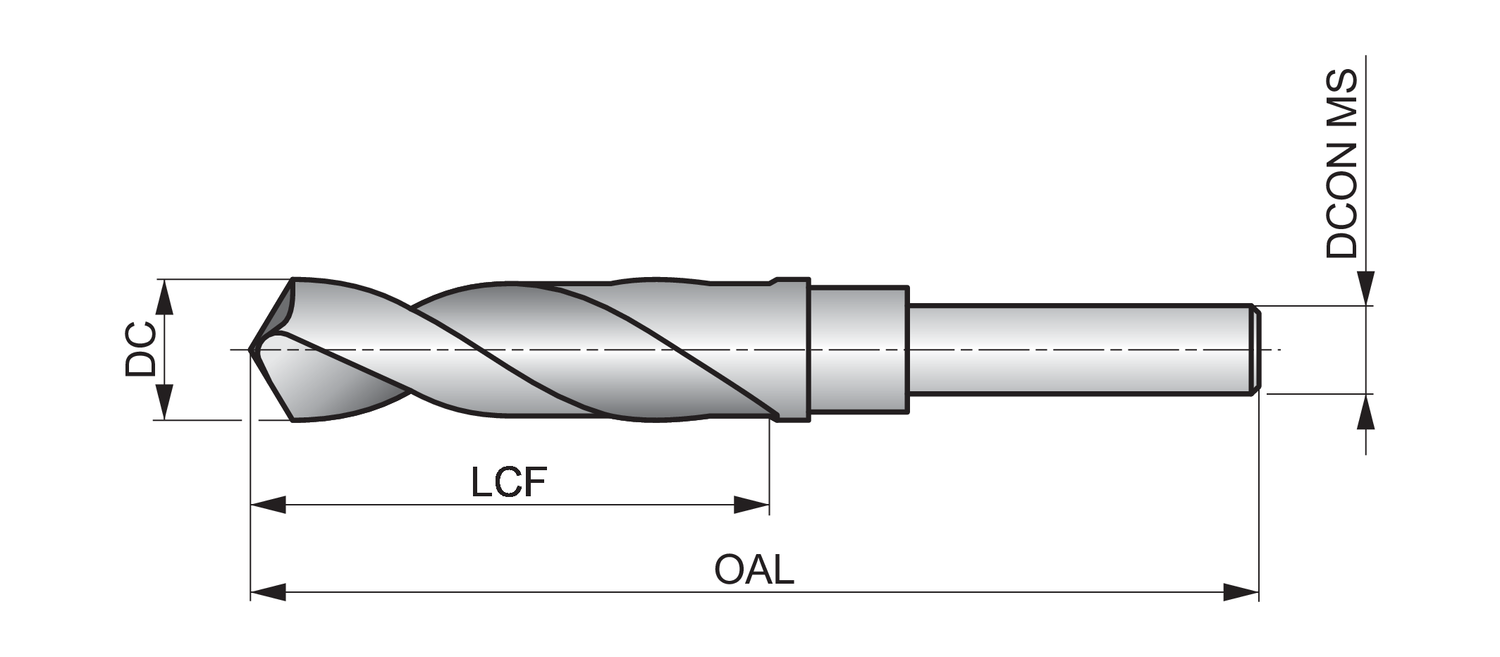

Connection diameter - fractional inch (DCON MS)

1/2

Connection diameter - inch (DCON MS)

0.5

Connection diameter - millimeter (DCON MS)

12.7

Cutting diameter - fractional inch (DC)

1"""""

Cutting diameter - inch (DC)

Cutting diameter - millimeter (DC)

25.4

Drill Length

Jobber

Hand (Cutting direction)

Right

Length chip flute - fractional inch (LCF)

Material

HSS

Overall length - fractional inch (OAL)

Overall length - millimeter (OAL)

152.4

Point Angle (SIG)

118

Spiral form

Standard Spiral

Surface treatement

Steam Tempered

Usable length (ULDR)

R56 silver and deming drills have a reduced 1/2 inch parallel shank which means you can hold large diameter drills in conventional, hand-held power tools.

Suitable for many different hand-held and machine applications, the drills are manufactured from High Speed steel and can be used for drilling many different materials including aluminum, stainless steel and steel.

The steam oxide finish ensures accurate results by preventing workpiece material from sticking to the cutting surfaces of the drill, whilst the conventional 118 degree point provides strength and means the tools can be easily re-ground for use again and again.
