CO500-121/4 5995759 Bronze 135° Extra Length Aircraft Extension Drill 1/4 inch
MODEL 5995759
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$24.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
NAS907
Coating
Bronze
Connection (shank) description
Cylindrical shank

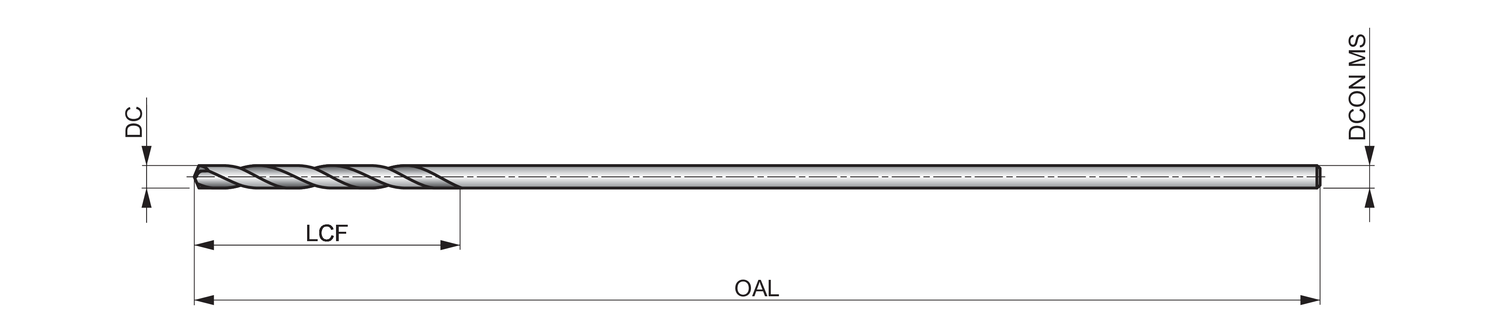

Cutting diameter - fractional inch (DC)
1/4"
Cutting diameter - inch (DC)
0.25
Cutting diameter - millimeter (DC)
6.35
Drill Length
XL
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.3/4
Length chip flute - inch (LCF)
2.75
Material
HSS-E
Overall length - fractional inch (OAL)
12
Overall length - millimeter (OAL)
304.8
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
The 500-12 long series aircraft extension drill bits conform to NAS907 type J, in fractional sizes from 1/16” to 1/4” in 1/64 “ increments.
The drills are manufactured from premium High Speed cobalt so are suitable for drilling in many materials, including steels, stainless steel and aluminum and have a long overall length of 12 inches with short flute length to provide stable drilling in hard to reach areas.
The drills have a 135 degree split point, designed to self-center, with low thrust for better penetration, and a bronze oxide finish to prevent workpiece material from sticking to the cutting edges of the tool for cleaner, more accurate holes.
