Image for Illustration purposes only. Actual product may vary

Precision Twist Drill CO501-6N10, part number 5996022, #10 (0.1935") HSS-E cobalt aircraft extension drill with bronze finish and 135° point. NAS907 standard, 2-7/16" flute length, 6" overall length, cylindrical shank, right-hand cut. For aerospace holemaking in steel, stainless steel, cast iron, and high-temperature alloys.

Name: Precision Twist Drill CO501-6N10, part number 5996022, #10 (0.1935") HSS-E cobalt aircraft extension drill with bronze finish and 135° point. NAS907 s
Brand: Precision Twist Drill
Price: 9.59 USD
Availability: InStock
Rating: 5.0 (1 reviews)

MODEL 5996022

BRAND

Precision Twist Drill

SKU

6087280

WEIGHT

0.042 lb

UOM

each

This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.

$9.59 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(12 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Customers Also Bought

#6085434

Precision Twist Drill R18AN10, part number 5999275, #10 (0.1935") HSS jobber drill with black oxide finish and 118° point. NAS907 aircraft standard, right-hand cut, cylindrical shank. 2-7/16" flute length, 3-5/8" overall length. For steel, cast iron, and non-ferrous metals.

Brand

Precision Twist Drill

Model

5999275

$3.90 Each

Free Shipping orders over $100

#6087664

Precision Twist Drill R18CON40, part number 5997784, #40 (0.098") HSS-E Cobalt heavy duty jobber drill with bronze finish and 135° point. NAS907 standard, right-hand cut, cylindrical shank. 1-3/8" flute length, 2-3/8" overall length. For aerospace and demanding applications in steel, stainless steel, cast iron, and high-temperature alloys.

Brand

Precision Twist Drill

Model

5997784

$2.85 Each

Free Shipping orders over $100

#6072728

Dormer Pramet A7774.5 5971084 jobber length drill, 4.5mm diameter, 135° split point, Cobalt High Speed Steel (HSS-E) with Bronze coating and steam tempered surface. DIN 338 standard, standard spiral flute, cylindrical shank, right hand cutting. 80mm overall length, 47mm flute length. Suitable for cast iron, steel, and high-temperature alloys.

Brand

Dormer Pramet

Model

5971084

$4.86 Each

Free Shipping orders over $100

#6072746

Dormer Pramet A7776.0 (MID 5971172) 6mm jobber length drill with 135° split point, DIN 338. Cobalt High Speed Steel (HSS-E) with Bronze coating and steam tempered surface treatment. Standard spiral flute, cylindrical shank, 93mm overall length, 57mm flute length. For steel, cast iron, and high-temperature alloys.

Brand

Dormer Pramet

Model

5971172

$7.23 Each

Free Shipping orders over $100

ApplicationAngleIcon_DICT_SEL

Drill point 135°

Basic Standard

NAS907

Coating

Bronze

Connection (shank) description

Cylindrical shank

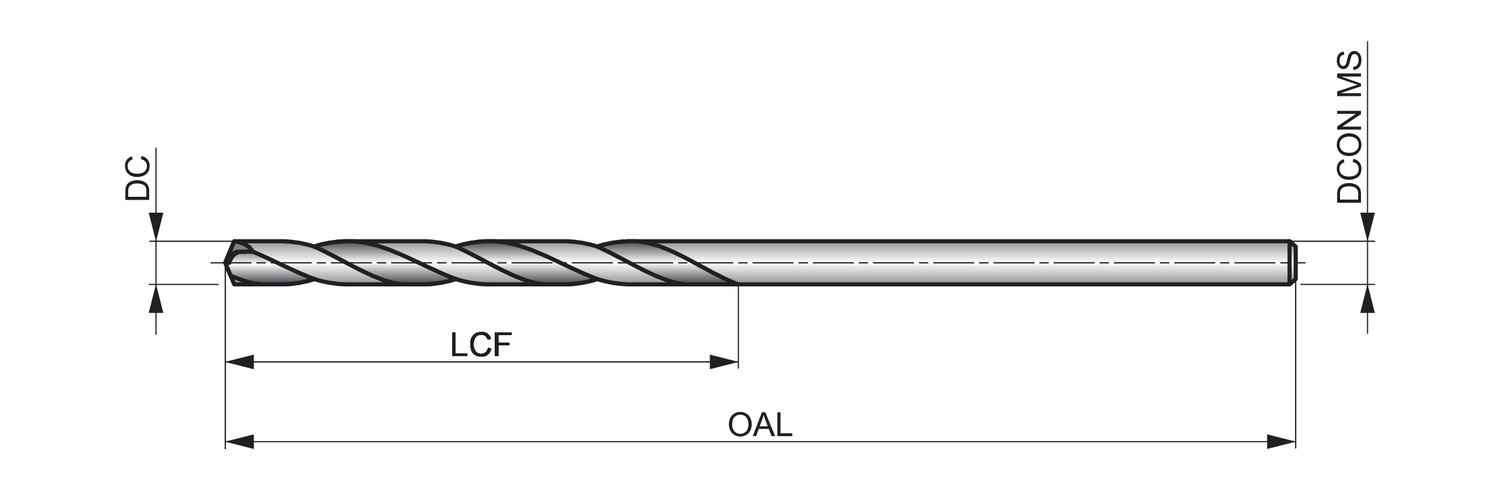

Cutting diameter (wire gauge size) (DC)

N10

Cutting diameter - inch (DC)

0.1935"

Cutting diameter - millimeter (DC)

4.91

Drill Length

Long

Hand (Cutting direction)

Right

Length chip flute - fractional inch (LCF)

2.7/16

Length chip flute - inch (LCF)

2.4375

Material

HSS-E

Overall length - fractional inch (OAL)

Overall length - millimeter (OAL)

152.4

Point Angle (SIG)

135

Spiral form

Standard Spiral

Surface treatement

Steam Tempered

Usable length (ULDR)

The CO501-6 extra length aircraft extension drill bits are exactly what you need.

With all wire gauge sizes, the 501-6 drill bits have a low thrust design and self-centering, 135 degree split points for easier penetration.

Manufactured from premium High Speed cobalt, the drills can be used in many materials, including steel, aluminum and stainless steel and have a bronze oxide finish to prevent workpiece material from sticking to the cutting surfaces of the drills, ensuring clean and accurate holes.

Designed for stable drilling in hard to reach areas, the drills have a long overall length (6 inches on every drill), with short flutes.
