Precision Twist Drill R10CO3/32, part number 5998179, 3/32" (0.0938") HSS-E Cobalt heavy duty jobber drill with bronze finish and 135° point. NAS907 standard, right-hand cut, cylindrical shank. 1-1/4" flute length, 2-1/4" overall length. For aerospace and demanding applications in steel, stainless steel, cast iron, and high-temperature alloys.
MODEL 5998179
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$2.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
NAS907
Coating
Bronze
Connection (shank) description
Cylindrical shank

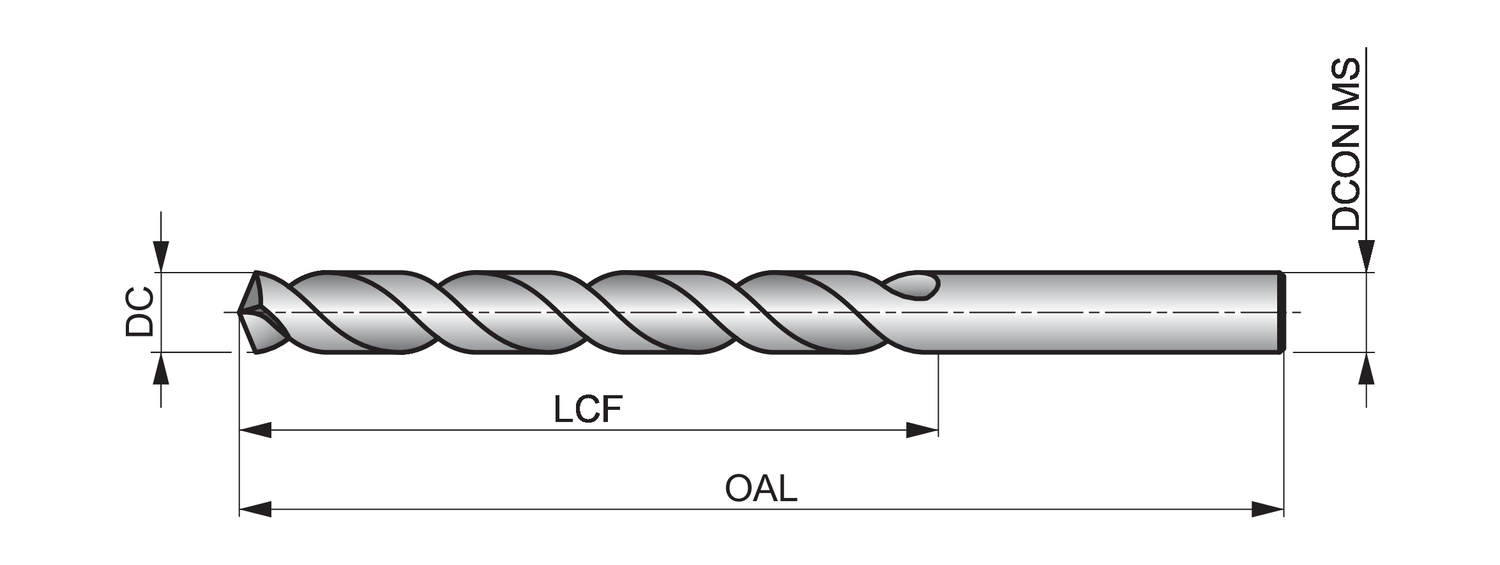

Cutting diameter - fractional inch (DC)
3/32
Cutting diameter - inch (DC)
0.0938
Cutting diameter - millimeter (DC)
2.38
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.1/4
Length chip flute - inch (LCF)
1.25
Material
HSS-E
Overall length - fractional inch (OAL)
2.1/4
Overall length - millimeter (OAL)
57.15
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
Manufactured from High Speed cobalt (HSCo), R10CO NAS907 type J jobber drills are available in sizes from 1/64 inch to 11/16 inch and can be used for drilling hard materials including tool steel.
The 135 degree split point is an aid to self-centering and reduces the amount of force needed to drill the hole, whilst the bronze oxide finish prevents workpiece material from sticking to the surfaces of the drill so you get clean, accurate holes.
R10CO jobber drills have a heavy duty design, recommended for use in difficult materials and applications.
