Precision Twist Drill SPLG-1201/4 6000046 1/4" (0.25") HSS TiN coated spot drill with 120° point, cylindrical shank, right-hand cut, 3/4" flute length, 6" overall length. Precision standard, standard spiral form. Suitable for spotting and centering in steel, cast iron, and non-ferrous metals.
MODEL 6000046
$97.42 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
TiN
Coating property (CTP)
1

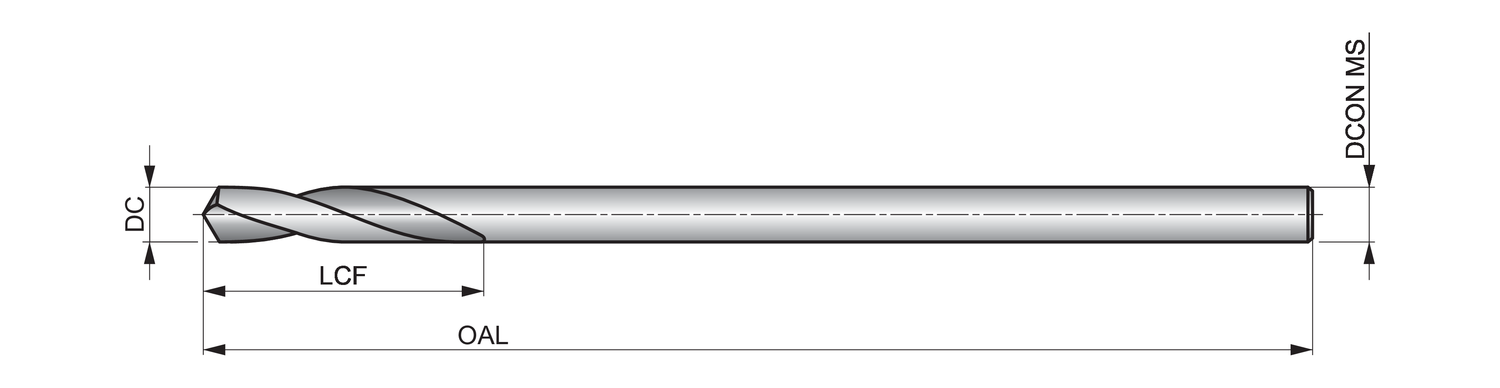

Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - millimeter (DC)
6.35
Cutting Diameter Inch Decimal
0.25
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3/4
Length chip flute - inch (LCF)
0.75
Material
HSS
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
For spotting holes including a 120 degree chamfer, SPLG-120 spotting drills, with a 120 degree conventional point are ideal. They can be used for drilling most common materials including steel, aluminum, cast iron and stainless steel, and the long length improves accuracy and centering when you need increased reach.
The titanium nitride coating extends the life of the drill and you get better performance when drilling harder materials.
SPLG-120 spotting drills have a 120 degree point angle for accurate chamfers to take standard screws.
