Precision Twist Drill SPLG-901/2 6000059 1/2" (0.5") HSS TiN coated spot drill with 90° point, cylindrical shank, right-hand cut, 1-3/8" flute length, 8" overall length, Precision standard.
MODEL 6000059
$137.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
TiN
Coating property (CTP)
1

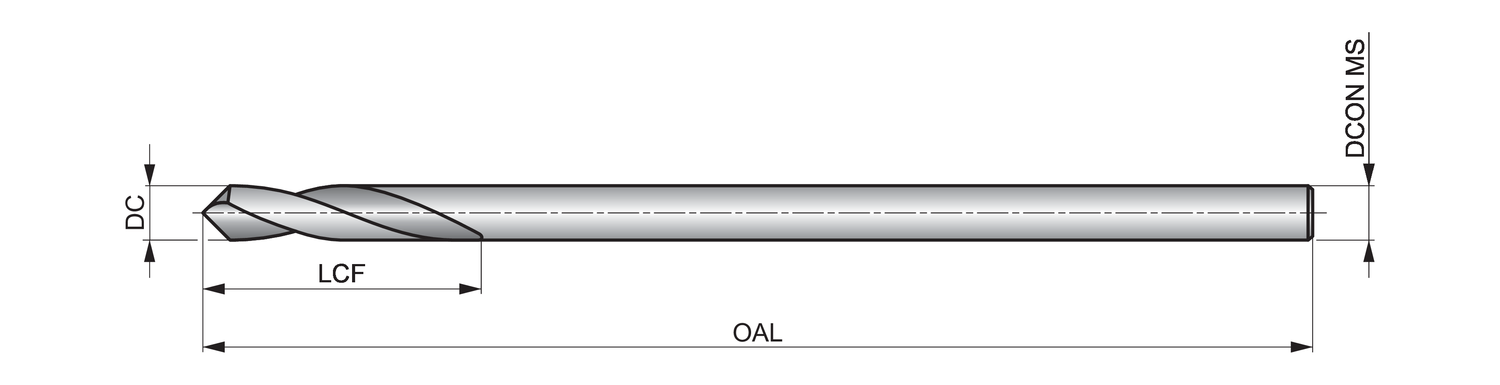

Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - millimeter (DC)
12.7
Cutting Diameter Inch Decimal
0.5
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.3/8
Length chip flute - inch (LCF)
1.375
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPLG-90 spotting drills have a 90 degree conventional point, designed for spotting holes including 90 degree chamfer, with a point angle providing an accurate chamfer to accommodate standard screws.
Where increased reach is needed, the long length improves centering and accuracy and the drills can be used when drilling most common materials, including cast iron, stainless steel, steel and aluminum making these spotting drills a versatile choice.
To round things off, SPLG-90 spotting drills come with a titanium nitride coating which both increases the service life of the tool and improves performance when drilling harder materials.
