SPRG-903/4 6000057 90° Spotting Drill Jobber 3/4 inch
MODEL 6000057
$186.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°
Basic Standard
Precision
Coating
TiN
Coating property (CTP)
1

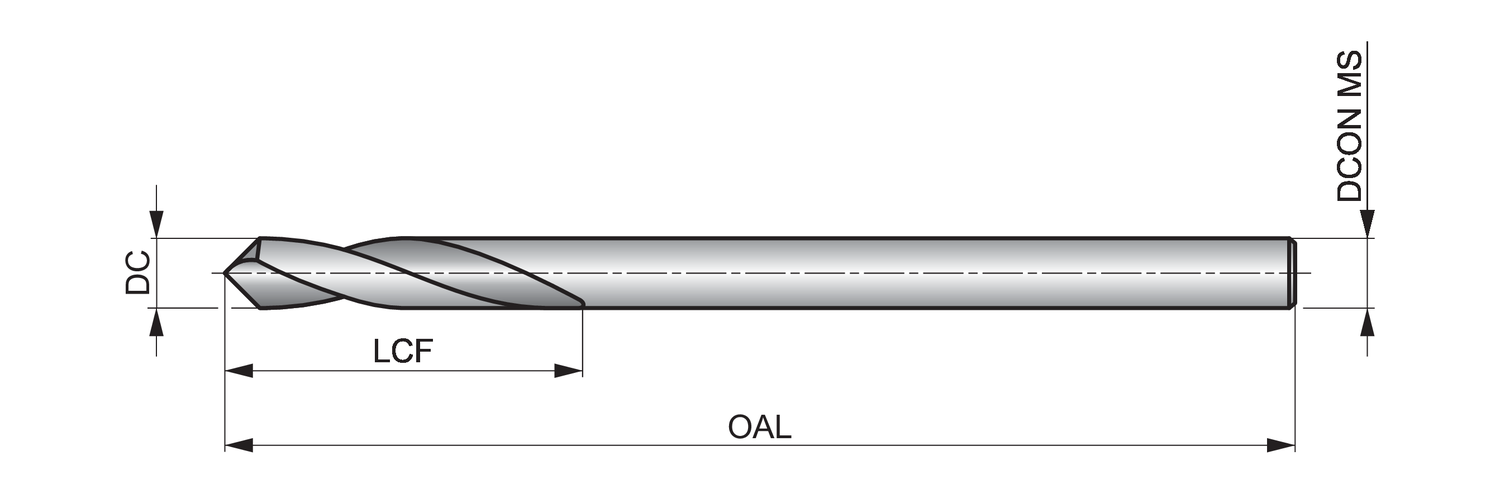

Cutting diameter - fractional inch (DC)
3/4
Cutting diameter - millimeter (DC)
19.05
Cutting Diameter Inch Decimal
0.75
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.7/8
Length chip flute - inch (LCF)
1.875
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
SPRG-90 spotting drills have a conventional, 90 degree point angle for spotting holes including a 90 degree chamfer, producing accurate chamfers to accommodate standard screws.
The titanium nitride coating improves performance when drilling harder materials and extends the life of the tool.
SPRG-90 spotting drills are suitable for drilling most common materials, including steel, stainless steel, aluminum and cast iron.
