QC0860P31/64 5995790 135° Extra Length Drill ANSI 31/64 inch
MODEL 5995790
$111.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

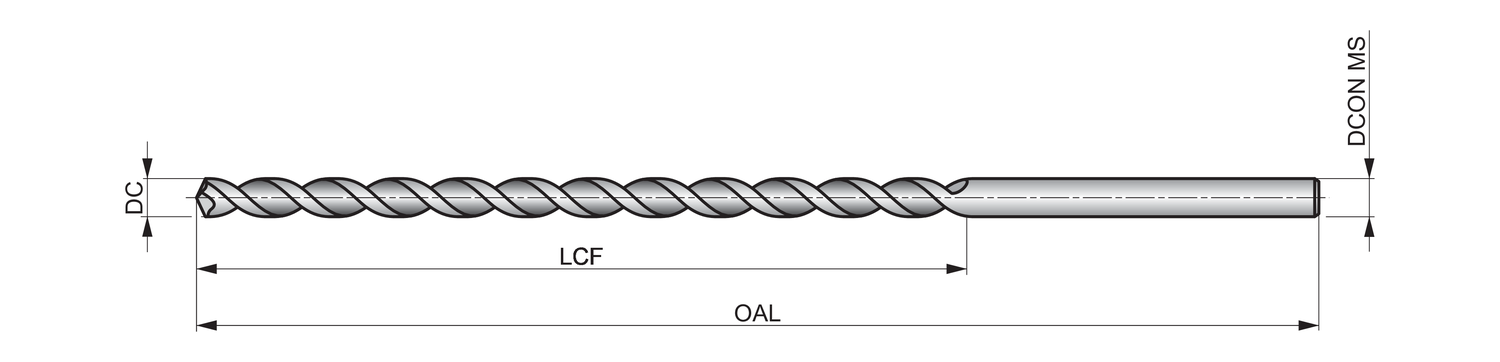

Cutting diameter - fractional inch (DC)
31/64"
Cutting diameter - inch (DC)
0.4844
Cutting diameter - millimeter (DC)
12.3
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
6
Material
HSS
Overall length - fractional inch (OAL)
8"
Overall length - inch (OAL)
8
Overall length - millimeter (OAL)
203.2
Point Angle (SIG)
135
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
10
QC0860P extra length drill bits all have an overall length of 8 inches and a special parabolic flute design which allows you to drill deeper holes in a single pass.
The 135 degree split point is a great aid to self-centering and reduces the force needed to drill the hole, whilst the bright finish prevents workpiece material from sticking to the cutting surfaces of the drill to guarantee clean and accurate holes.
QC056P extra length drill bits are manufactured from High Speed Steel, suitable for drilling a wide range of materials including stainless steel, steels and aluminum, and are available in a range of fractional sizes from 1/8 inch to 1/2 inch.
