QC91PM12.0 5997433 Taper Length Drill Long DIN 340 12.00 mm
MODEL 5997433
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$61.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DIN 340
Coating
Bright
Connection (shank) description
Cylindrical shank

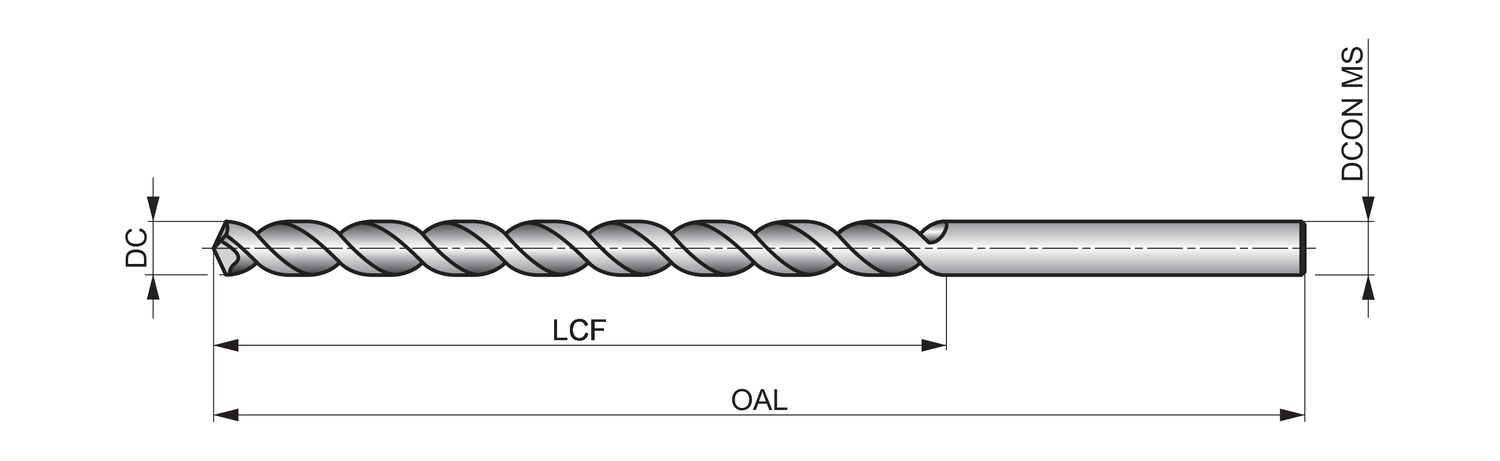

Connection diameter - millimeter (DCON MS)
12
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Drill Length
Long
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
134
Length chip flute - inch (LCF)
5.2756
Material
HSS
Overall length - millimeter (OAL)
205
Overall length - inch (OAL)
8.0709
Point Angle (SIG)
135
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
QC91PM taper length drills have a 135 degree split point which reduces the push force needed and helps with self-centering for a rounder hole.
The bright finish also ensures clean and accurate holes by preventing workpiece material from sticking to the cutting surfaces of the tool.
The drills can be used in a wide range of materials including steel, stainless steel and aluminum, being made from premium High Speed steel, and come in a wide range of metric sizes from 1.50 mm to 17.00 mm.
QC91PM taper length drills have a special parabolic flute, enabling drilling deeper holes in a single pass.
