QC91PN38 5997095 Taper Length Drill Long ANSI N38
MODEL 5997095
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$19.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank
Cutting diameter (wire gauge size) (DC)
N38
Cutting diameter - inch (DC)
0.1015
Cutting diameter - millimeter (DC)
2.58
Drill Length
Long
Hand (Cutting direction)
Right

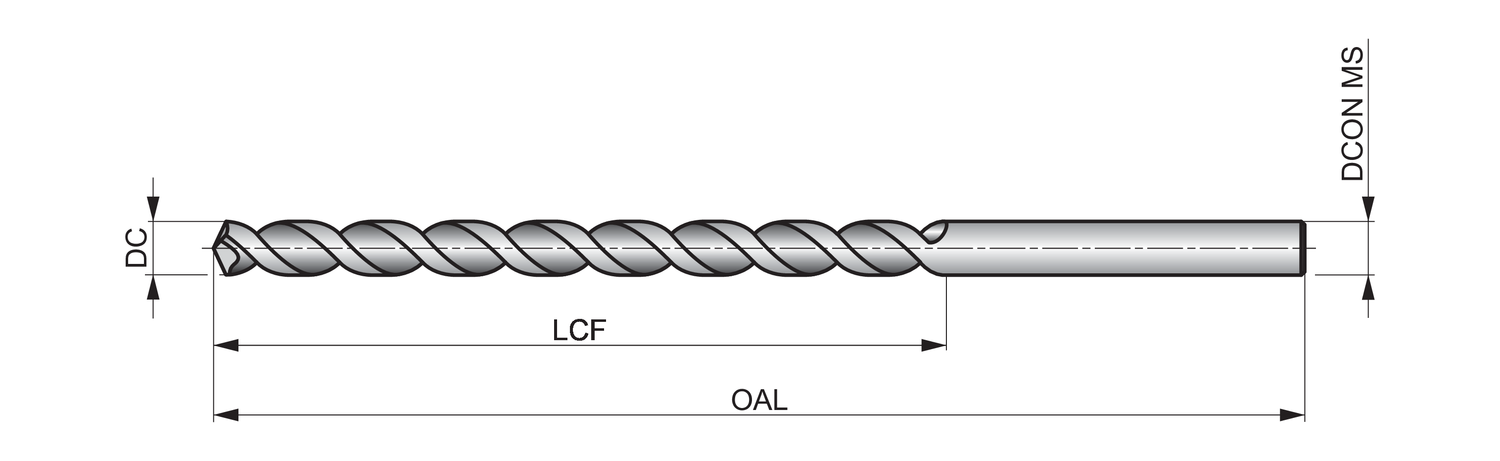

Length chip flute - fractional inch (LCF)
2.1/2
Length chip flute - inch (LCF)
2.5
Material
HSS
Overall length - fractional inch (OAL)
4.5/8
Overall length - inch (OAL)
4.625
Overall length - millimeter (OAL)
117.48
Point Angle (SIG)
135
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
6
The bright finish prevents workpiece material from sticking to the cutting edges of the tool for a clean and accurate hole, whilst the 135 degree split point helps with self-centering for a rounder hole.
With a specially designed parabolic flute, QC91P taper length drills can drill deeper holes in a single pass.
| Brand | Regal Cutting Tools |
| Model | 012367AW |
