Precision Twist Drill DS1201/2 7378067 solid carbide spot drill with bright finish and 120° point. 1/2" cutting diameter, 1-1/4" flute length, 4" overall length, cylindrical shank, right-hand cut, Precision standard. For CNC spotting and chamfering in steel, stainless, cast iron, and non-ferrous alloys.
MODEL 7378067
$100.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
Precision
Coating
Bright

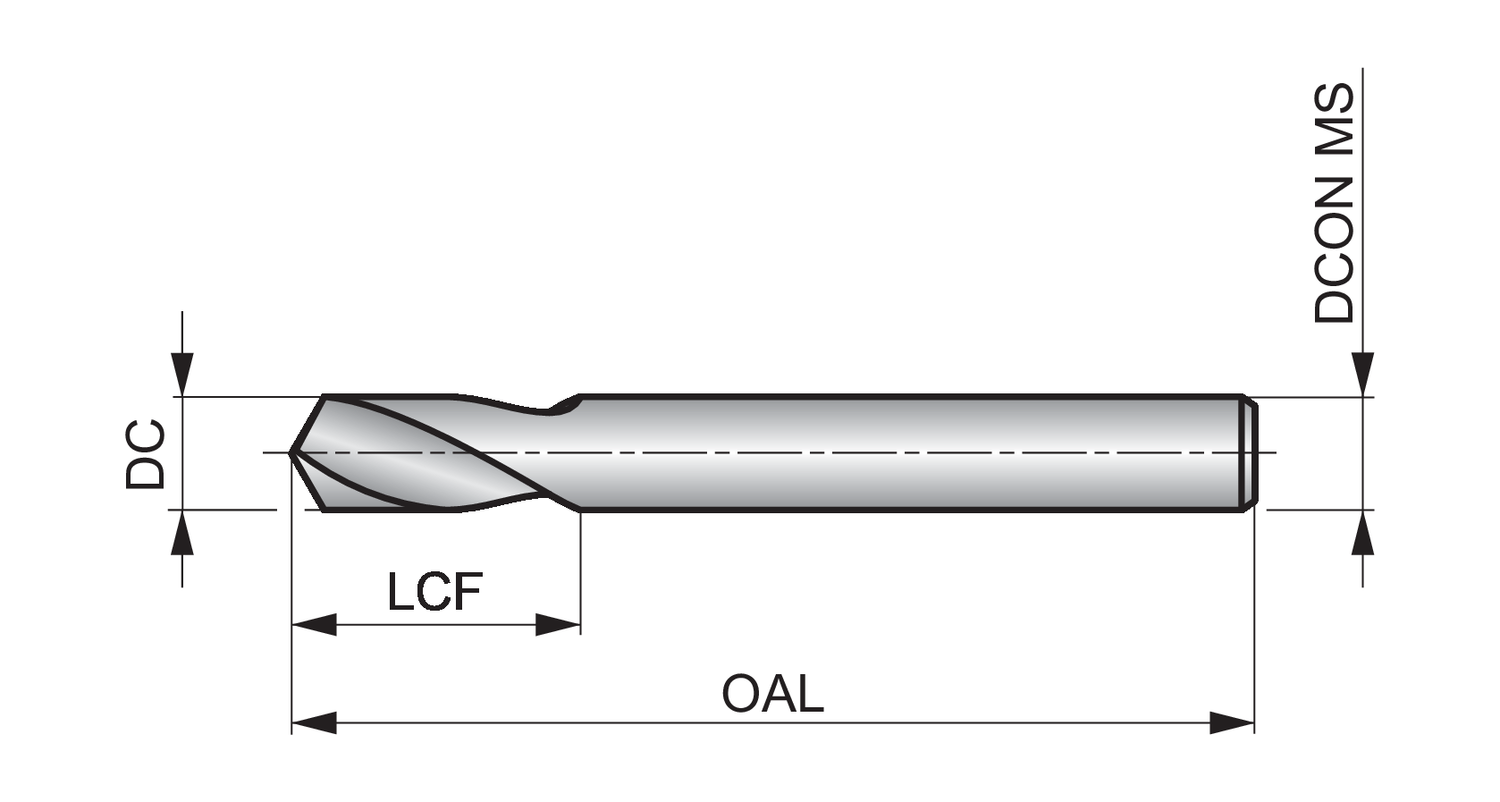

Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - millimeter (DC)
12.7
Cutting Diameter Inch Decimal
0.5
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.1/4
Length chip flute - inch (LCF)
1.25
Material
Carbide
Overall length - fractional inch (OAL)
4"
Overall length - inch (OAL)
4
Overall length - millimeter (OAL)
76.2
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
With an accurate 120 degree self-centering point angle providing precision chamfering to accommodate standard screws and as an aid to accurate hole location, DS-120 spotting drill bits are manufactured from premium carbide for spotting in a wide range of materials including stainless steel, steels and aluminum, whilst the bright finish ensures clean, accurate holes by preventing workpiece material from sticking to the cutting edges of the tool.
DS-120 solid carbide spotting drill bits are available in 6 different sizes from 1/8 inch to 1/2 inch.
