Precision Twist Drill DS1425/16 7378972 solid carbide spotting drill, 5/16" (0.3125") cutting diameter, 142° point angle, bright finish, cylindrical shank, right-hand cut, Precision standard. 1" flute length, 2-1/2" overall length, 7.94 mm diameter. For CNC spotting and centering operations.
MODEL 7378972
$54.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 142°
Basic Standard
Precision
Coating
Bright

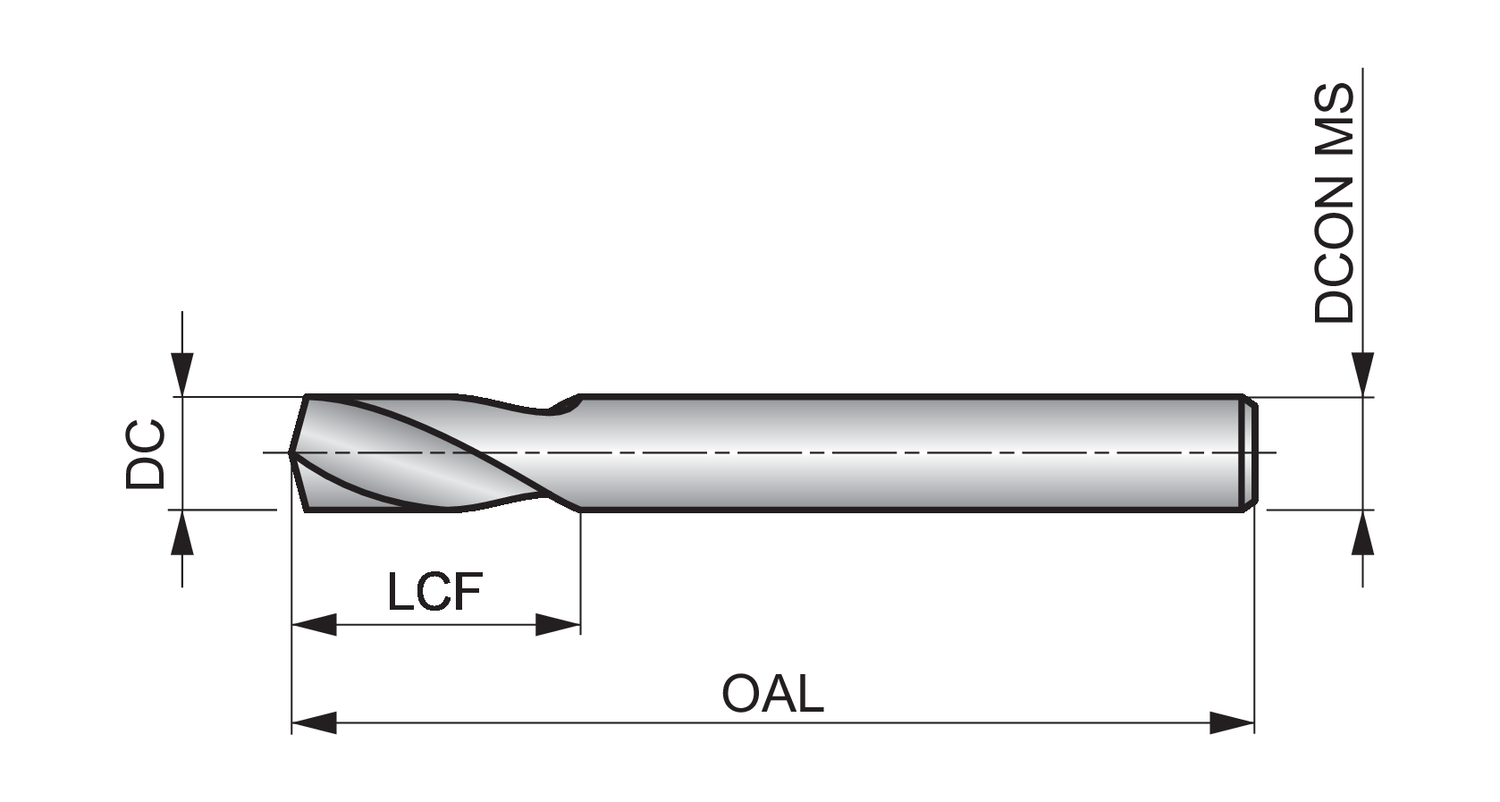

Cutting diameter - fractional inch (DC)
5/16
Cutting diameter - millimeter (DC)
7.94
Cutting Diameter Inch Decimal
0.3125
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1"
Length chip flute - inch (LCF)
1
Material
Carbide
Overall length - fractional inch (OAL)
2.1/2"
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Point Angle (SIG)
142
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
DS-142 spotting drills are manufactured from premium carbide and can be used in wide range of materials including stainless steel, steels and aluminum. They have a 142 degree point which helps with self-centering and reduces the push force needed to drill into the workpiece. They come in 6 different fractional sizes and have an accurate point angle to produce precision chamfers for standard screws, and a bright finish to give you clean, accurate holes by preventing workpiece material from sticking to the cutting edges of the drill.
