7466387

Image for Illustration purposes only. Actual product may vary

View in markdown

Precision Twist Drill FGR-10LD-L, part number 7466387, 1/4" (0.25") solid carbide rotary burr with drill point end and fiberglass/composite cut geometry. 135° point angle, 1/4" cylindrical shank, 1" usable length, 3" overall length. For deburring and routing of reinforced polymers and composites.

MODEL 7466387

BRAND

Precision Twist Drill

SKU

6089445

WEIGHT

0.075 lb

UOM

each

$38.31 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

ApplicationAngleIcon_DICT_SEL

Drill point 135°

Burr Type Code (BTC)

Fibreglass and Composite Materials Cut Geometry

BurrEndShot_DICT_SEL

Drill Point Burr End

Coating

Bright

Connection diameter - fractional inch (DCON MS)

1/4

Connection diameter - inch (DCON MS)

0.25

Connection diameter - millimeter (DCON MS)

6.35

Cutting diameter - fractional inch (DC)

1/4

Cutting diameter - inch (DC)

0.25

Cutting diameter - millimeter (DC)

6.35

Depth of cut maximum - fractional inch (APMX)

1

Material

HM

Overall length - fractional inch (OAL)

3

Overall length - inch (OAL)

3

Overall length - millimeter (OAL)

76.2

Point Angle (SIG)

135

Shank

Cylindrical shank

Usable Length - fractional inch (LU)

1

With GRP fibreglass geometry, designed specifically for routering thin sheets of fibreglass, FGR-D diamond cut routers are very versatile and can be used by machine, robot arm or hand.

With a bright finish to ensure clean and accurate results by preventing workpiece material from sticking to the cutting surfaces of the tool, the routers will enable you to both mill and router at the same time, thanks to the 180 degree flat bottom.

FGR-D diamond cut routers are made from carbide for superior performance and longer tool life at high speeds

Catalog
Flyer

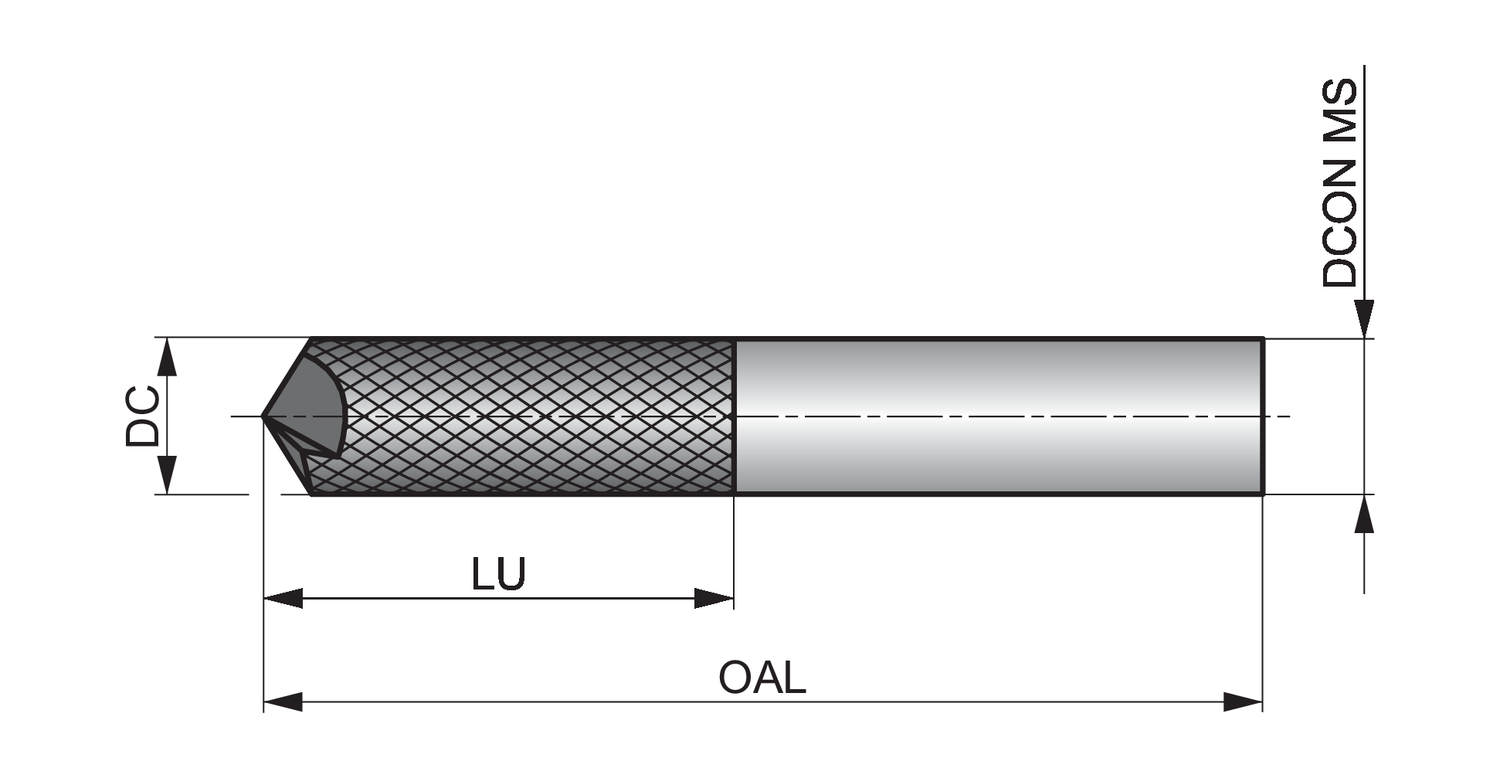

Line Drawing
