Precision Twist Drill PDM-02DC 7466390 solid carbide piloted die mill rotary burr, 1/8" (0.125") cutting diameter, 1/8" shank, 3" overall length, 1" usable length, double cut geometry, bright finish, 180° point. Cylindrical shank with h6 tolerance. For deburring and composite fiber routing in steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and hardened materials.
MODEL 7466390
$26.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBurr Type Code (BTC)
Double Cut Geometry
Coating
Bright

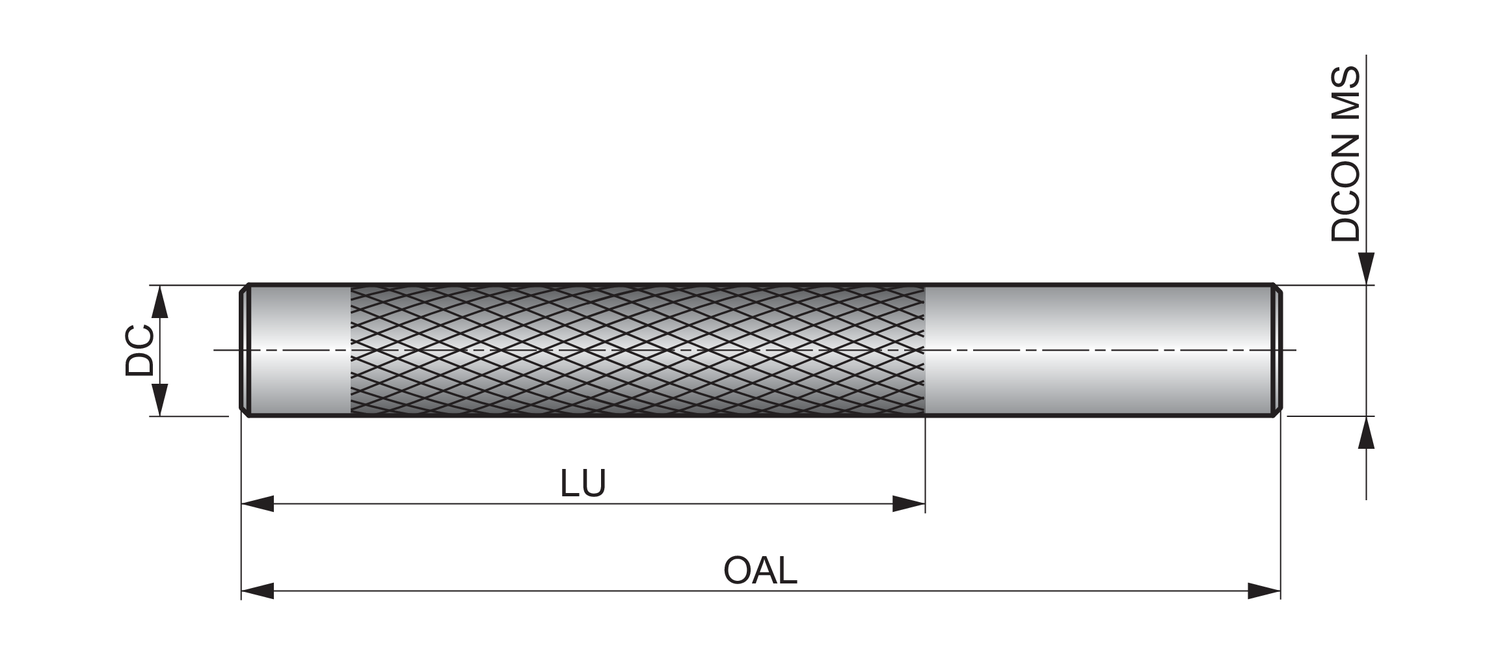

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Depth of cut maximum - fractional inch (APMX)
1
Material
HM
Overall length - fractional inch (OAL)
3
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Point Angle (SIG)
180
Shank
Cylindrical shank
Usable Length - fractional inch (LU)
1
With a guide pilot for accurate profile routering, PDM-DC diamond cut routers are manufactured from premium carbide for great performance and longer tool life at high speeds.
They come with fibreglass geometry (GRP), specifically for routering thin sheets of fibreglass, and have a bright finish to prevent workpiece material from sticking to the cutting surfaces of the tool and give clean and accurate results.
For use by machine, hand and robot arm, PDM-DC diamond cut routers are a very versatile choice
