Precision Twist Drill SM-02LDC-M, part number 7466361, 1/8" (0.125") solid carbide rotary burr with cone shape and double cut geometry. Cylindrical shank, 1/8" shank diameter, 5/8" usable length, 2" overall length. Bright finish. For deburring and carving in steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and hardened materials.
MODEL 7466361
$12.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBurr Shape
M - Cone Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright

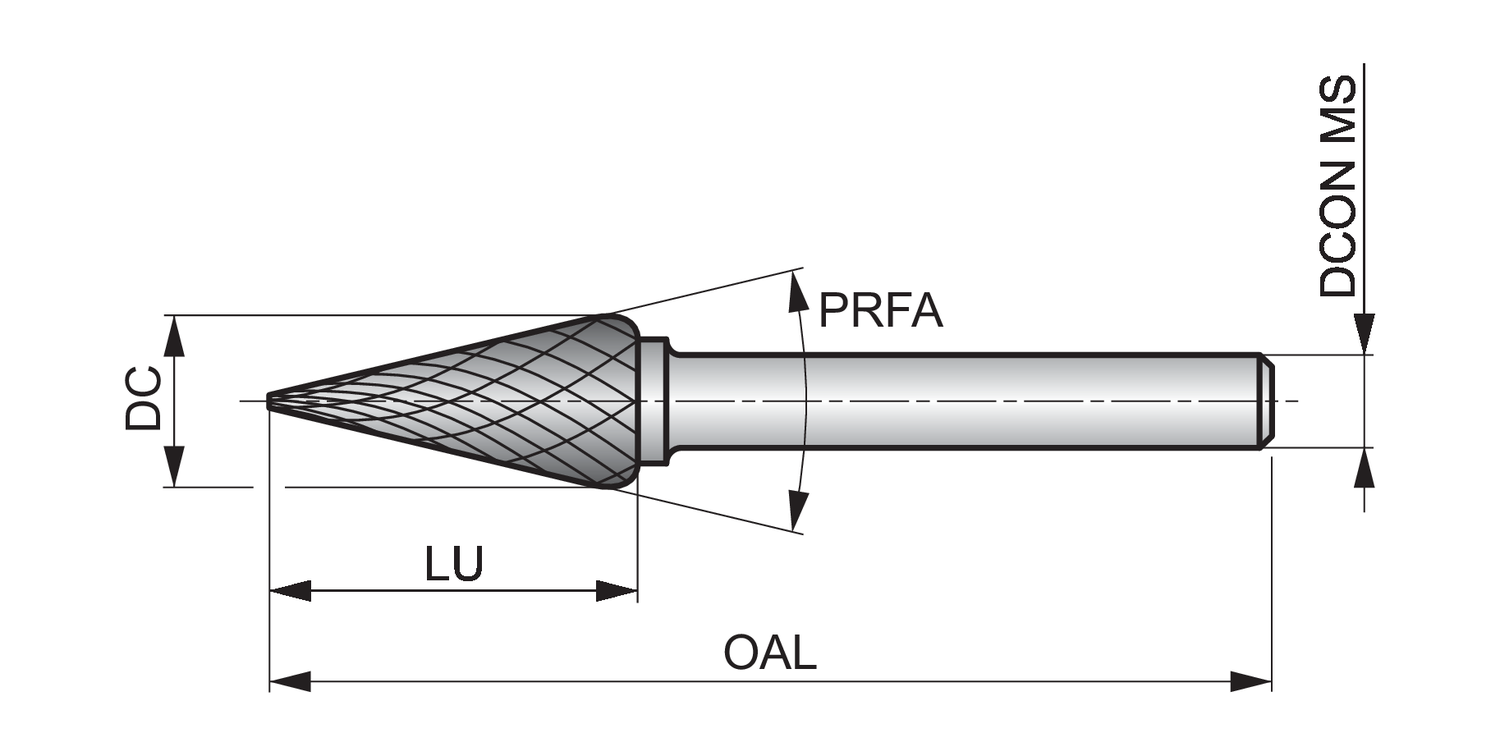

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Depth of cut maximum - fractional inch (APMX)
5/8
Material
HM
Overall length - fractional inch (OAL)
2
Overall length - inch (OAL)
2
Overall length - millimeter (OAL)
50.8
Profile angle (PRFA)
7
Shank
Cylindrical shank
Usable Length - fractional inch (LU)
5/8
SM-DC cone shaped (Shape M) rotary carbide burrs are ideal for de-burring in tight grooves.
Efficient chip breaking is achieved with the DC geometry so you get better control when de-burring by hand, whilst the toughened and hardened steel shank provides extra strength and rigidity to reduce vibration and prolong tool life.
With a bright finish to prevent workpiece material from sticking to the cutting edges for a cleaner finish, SM-DC rotary carbide burrs are manufactured from premium carbide material for superior performance and extended tool life at high speeds
