Image for Illustration purposes only. Actual product may vary
312SM7/64 7233782 Bronze 135° Heavy Duty Stub Drill 7/64 inch
MODEL 7233782
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$2.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
ST/Bronze

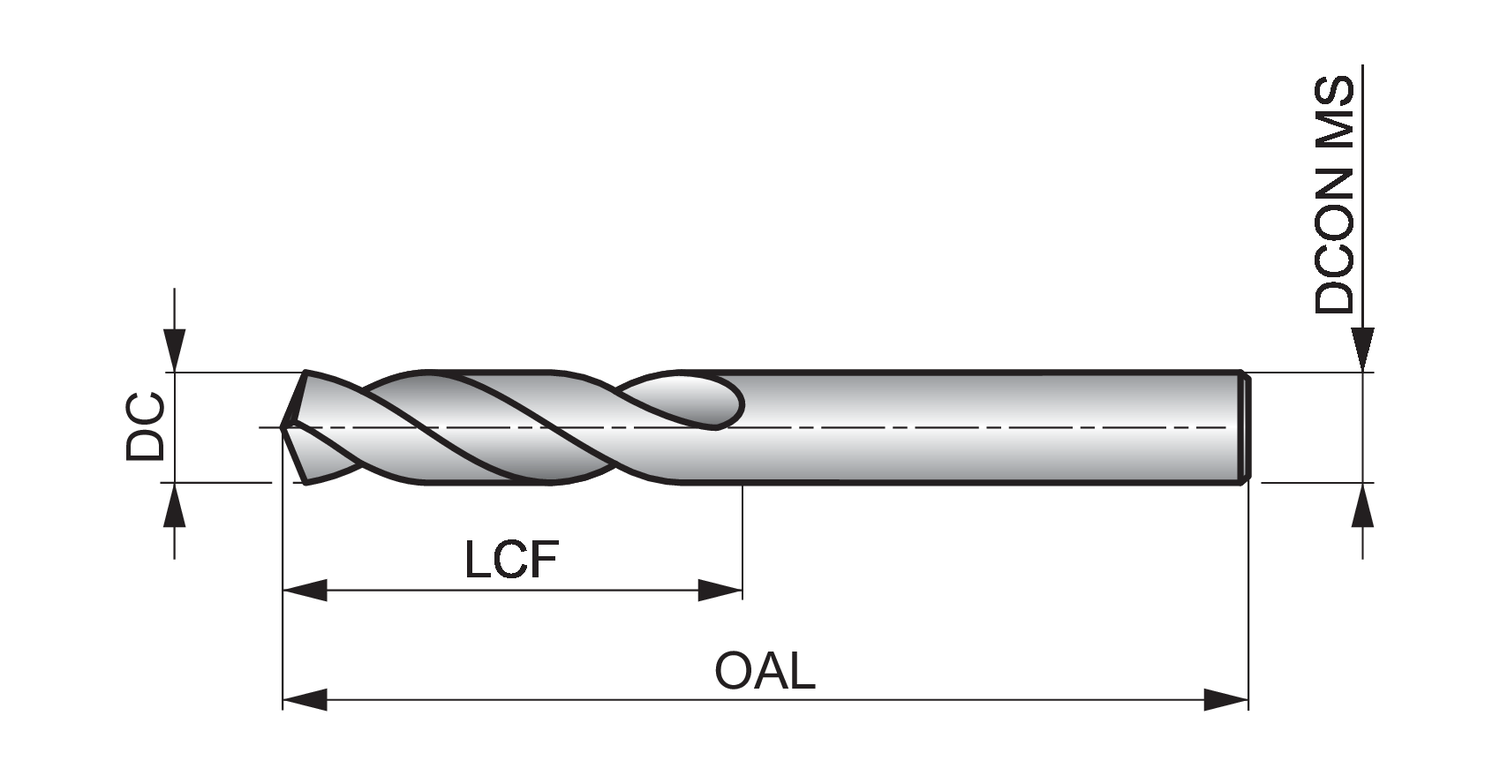

Connection diameter - inch (DCON MS)
0.1094
Cutting diameter - fractional inch (DC)
7/64
Cutting diameter - inch (DC)
0.1094
Cutting diameter - millimeter (DC)
2.78
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
13/16
Length chip flute - inch (LCF)
0.8125
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
1.13/16
Overall length - inch (OAL)
1.8125
Overall length - millimeter (OAL)
46.04
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
2.5
Designed with a short flute and overall length for increased rigidity, hole accuracy and tool life.
SelfCentering 135° Split Point for reduced the thrust requirements and minimizes ‘walking’ particularly on curved surfaces.
Recommended for use in portable power tools.
