Precision Twist Drill 333HD9/64, part number 7233753, 9/64" (0.1406") HSS heavy duty jobber drill with TiN coating and 135° point. 1-3/4" flute length, 2-7/8" overall length, ANSI standard, right-hand cut, cylindrical shank.
MODEL 7233753
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$4.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
ANSI
Coating
TiN
Coating property (CTP)
1

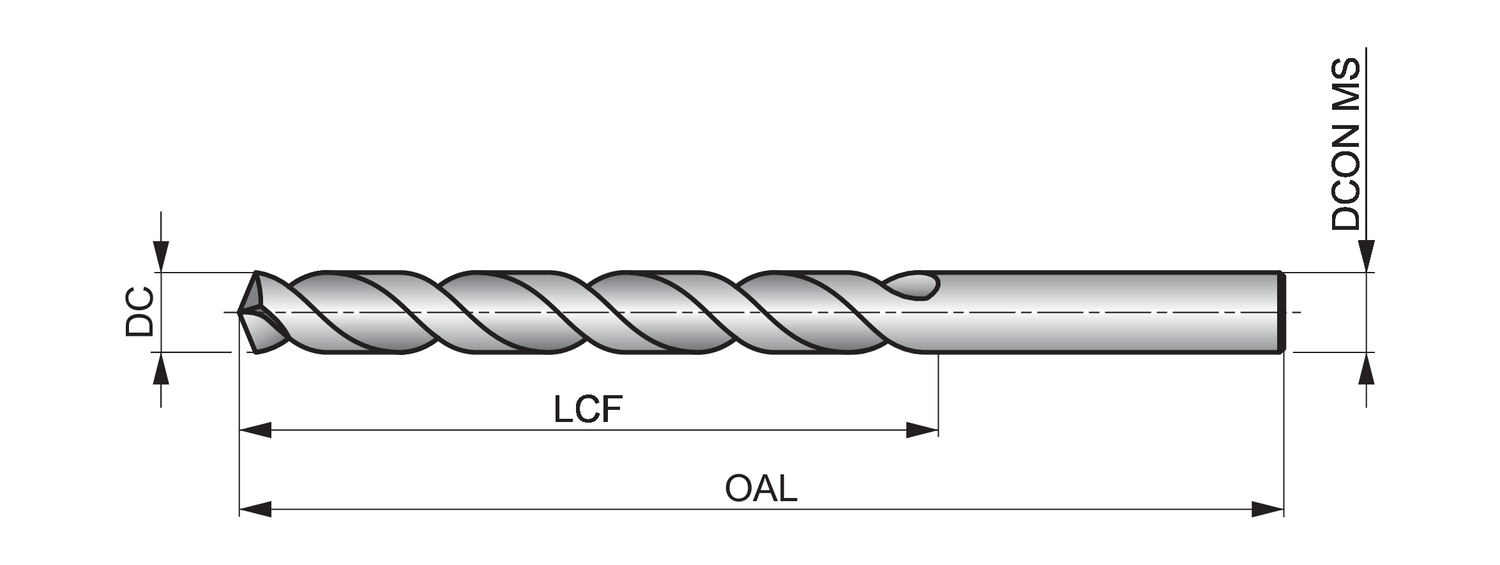

Cutting diameter - fractional inch (DC)
9/64
Cutting diameter - inch (DC)
0.1406
Cutting diameter - millimeter (DC)
3.57
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
1.3/4
Length chip flute - inch (LCF)
1.75
Material
HSS
Overall length - fractional inch (OAL)
2.7/8
Overall length - millimeter (OAL)
73.03
Point Angle (SIG)
135
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
4
Heavier web construction than 301JD MRO drills, providing greater rigidity and strength in drilling medium strength alloy materials.
The Self-Centering 135° Split Point reduces thrust requirements and minimizes ‘walking’ particularly on curved surfaces.
