46023/4X82 6005591 Countersink ANSI 4FL 3/4 inch
MODEL 6005591
$54.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Center drilling 82°
Basic Standard
ANSI
Coating
Bright

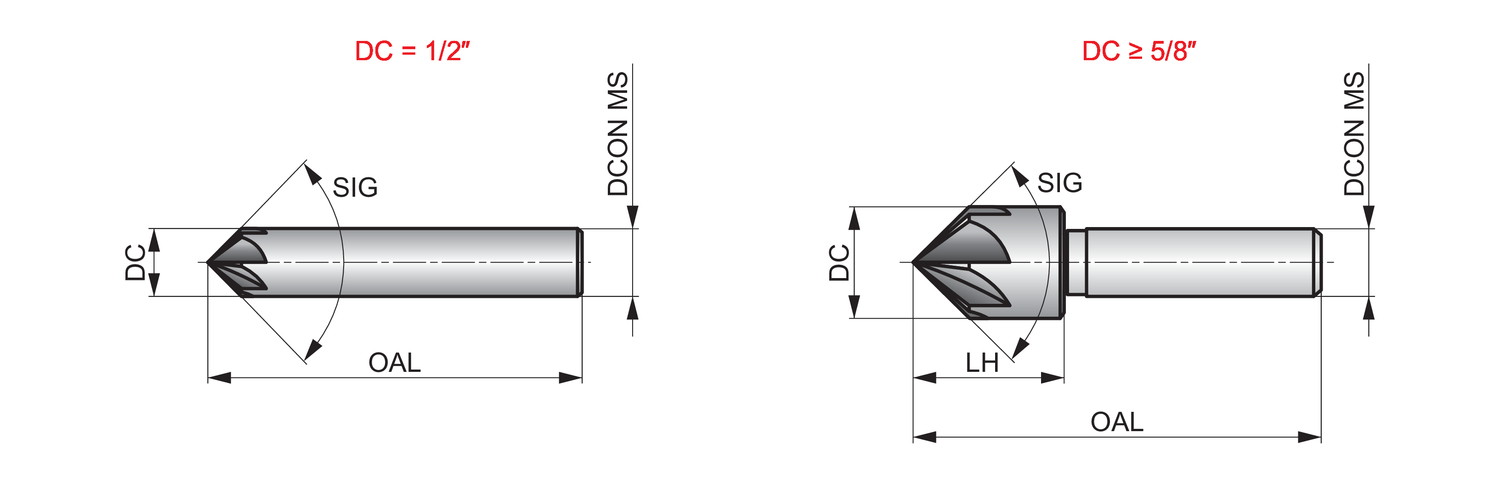

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cutting diameter - fractional inch (DC)
3/4
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.05
Flute count (NOF)
4
Functional length - fractional inch (LF)
1.7/8
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
4.1/8
Overall length - inch (OAL)
4.125
Overall length - millimeter (OAL)
104.78
Point Angle (SIG)
82
Shank
Cylindrical shank
Countersink with 4-flutes, 82° chamfering angle, maximum diameter 3/4" with an overall length of 4.1/8" and a head length of 1.7/8" and 1/2" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys.
