Image for Illustration purposes only. Actual product may vary
46033/4X82 6005685 Countersink ANSI 1FL 3/4 inch
MODEL 6005685
$35.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 82°
Basic Standard
ANSI
Coating
Bright

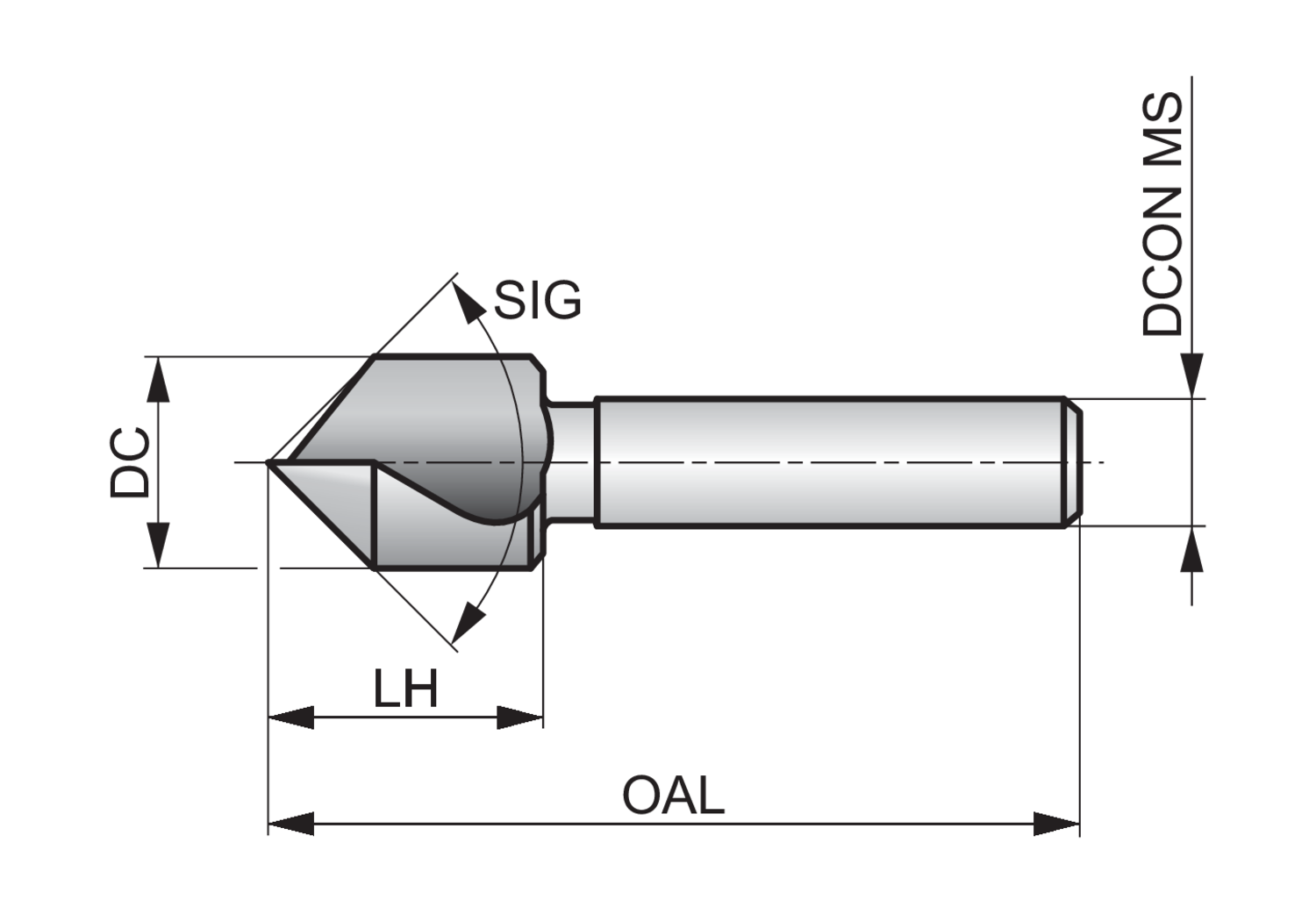

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Cutting diameter - fractional inch (DC)
3/4
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.05
Flute count (NOF)
1
Functional length - fractional inch (LF)
1.5/32
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
2.13/32
Overall length - inch (OAL)
2.4063
Overall length - millimeter (OAL)
61.12
Point Angle (SIG)
82
Shank
Cylindrical shank
Countersink with 1-flute, 82° chamfering angle, maximum diameter 3/4" with an overall length of 2.13/32" and a head length of 1.5/32" and 3/8" straight shank, according to ANSI standard to produce a conical seat for US standard countersunk-head screws, HSS with standard bright finish for machining free machining, plain carbon and tool steel, wrought and copper or copper alloys.
