1500L1/4X20 6006635 Hand Tap UNC 1/4 inch x 20
MODEL 6006635
$9.21 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard

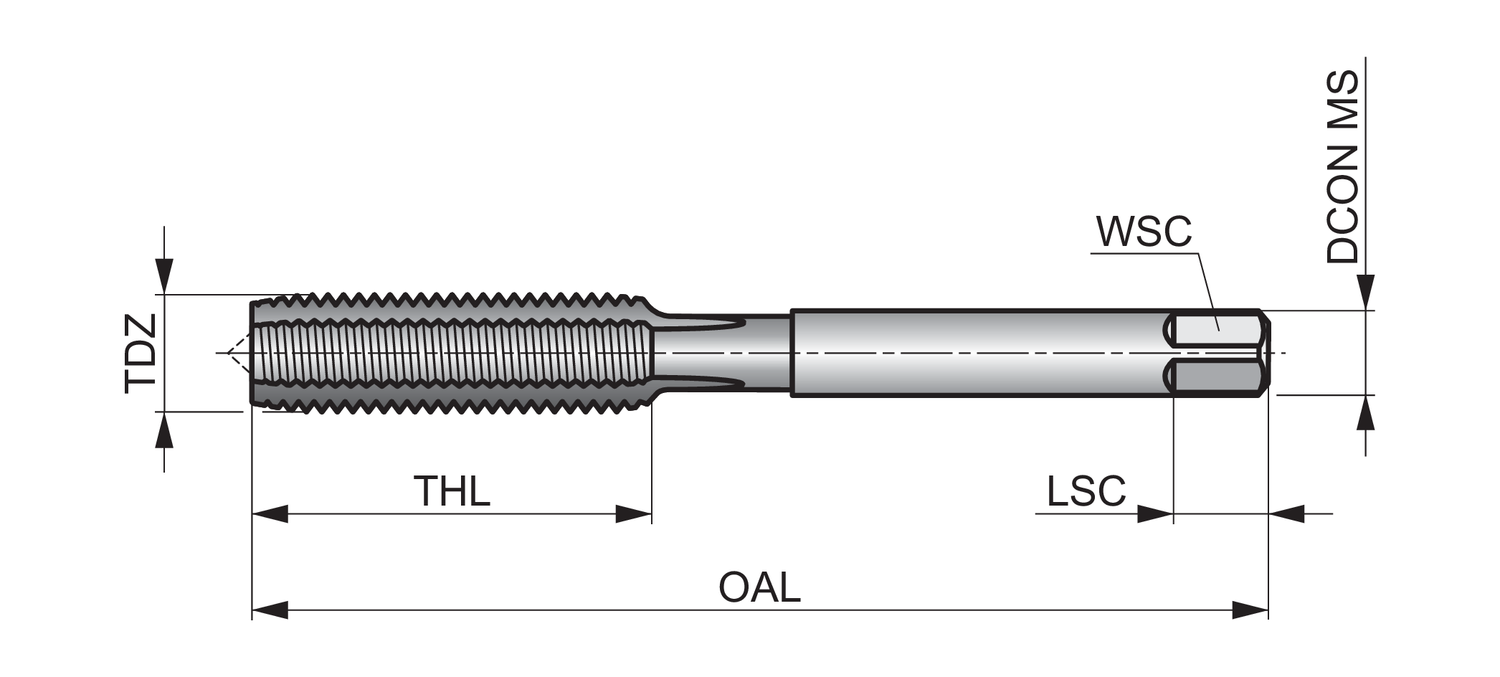

ANSI
Clamping width - inch
0.191
Coating
Bright
Connection diameter - inch (DCON MS)
0.255
Connection diameter - millimeter (DCON MS)
6.48
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Left
Material
HSS
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
1/4
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
1"
Threads per inch (TPI)
20
Tolerance limit
H3
Usable length (ULDR)
1.5
The 1500L range of hand taps should be used to create left hand threads in steel, stainless steel, aluminum and cast iron. They are similar in design to the standard 1500 series and are available with a plug chamfer to create UNC, UNF and UNS threads, conform to ANSI standards and can be used for hand tapping many materials including steel, cast iron, aluminum and stainless steel.
The bright finish prevents workpiece material from sticking to the cutting surfaces of the tap for clean and accurate threads, whilst the straight flutes mean both through and blind holes can be threaded by these 1500L Union Butterfield taps.
