Image for Illustration purposes only. Actual product may vary
1500L3/4X10 6006643 Hand Tap UNC 3/4 inch x 10
MODEL 6006643
$48.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

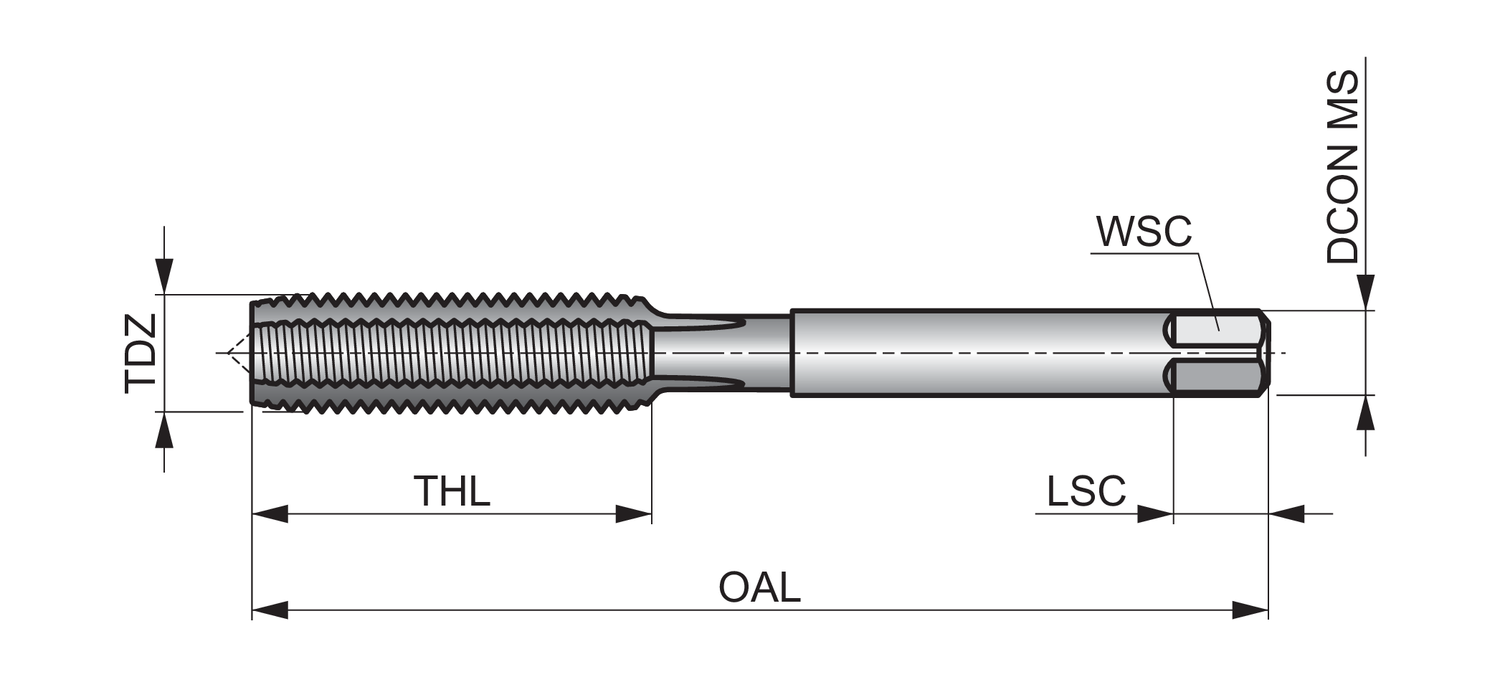

Clamping width - inch
0.442
Coating
Bright
Connection diameter - inch (DCON MS)
0.59
Connection diameter - millimeter (DCON MS)
14.99
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Left
Material
HSS
Overall length - fractional inch (OAL)
4.1/4
Overall length - inch (OAL)
4.25
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
3/4
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
2"
Threads per inch (TPI)
10
Tolerance limit
H3
Usable length (ULDR)
1.5
The bright finish prevents workpiece material from sticking to the cutting surfaces of the tap for clean and accurate threads, whilst the straight flutes mean both through and blind holes can be threaded by these 1500L Union Butterfield taps.
