Image for Illustration purposes only. Actual product may vary
1500S5/8X18 6006975 UNF Hand Tap 3pc Set 4FL 5/8 inch x 18
MODEL 6006975
$72.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

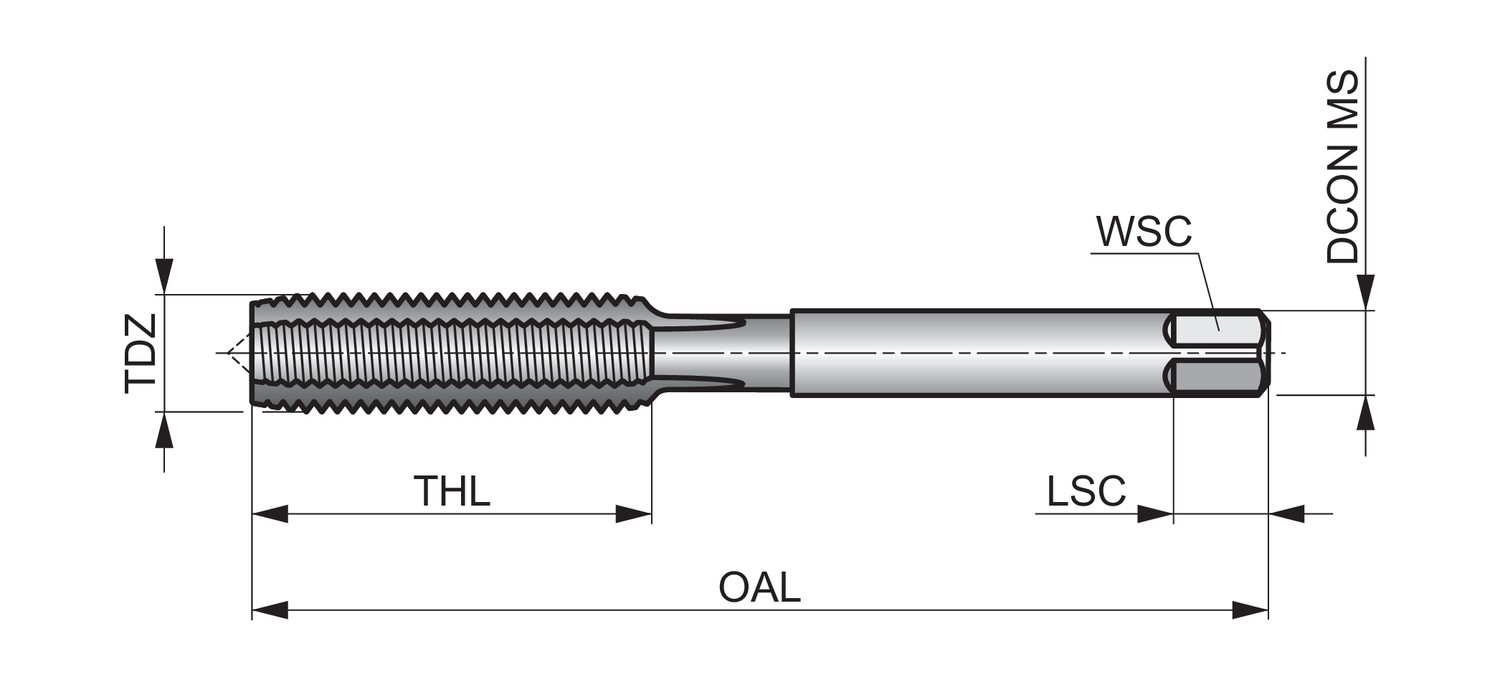

Clamping width - fractional inch (WSC)
0.48
Clamping width - inch
0.36
Coating
Bright
Coating property (CTP)
4
Connection diameter - inch (DCON MS)
3.13/16
Connection diameter - millimeter (DCON MS)
12.19
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
3.13/16
Overall length - inch (OAL)
3.8125
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
5/8
Thread form (THFT)
UNF - Unified Fine
Threading length - fractional inch (THL)
1.13/16
Threads per inch (TPI)
18
Tolerance limit
H3
Usable length (ULDR)
1.5
For a set of three 1500 Union Butterfield hand taps in taper, plug and bottoming chamfers, choose 1500S sets.
Available in UNC, UNF and UNS thread forms, the 1500 taps in the sets have straight flutes for threading both through and blind holes and are manufactured to conform to the American National Standards Institute.
Suitable for hand tapping many materials including cast iron, steel, aluminum and stainless steel, the taps have a bright finish which prevents workpiece material from sticking to the cutting surfaces of the tap for accurate threads.
Each set of 1500S includes one each of 1500 taper, plug and bottoming chamfer taps.
