1528S0-80H1 6006774 UNF Hand Tap 3pc Set 2FL No.0 x 80
MODEL 6006774
$32.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

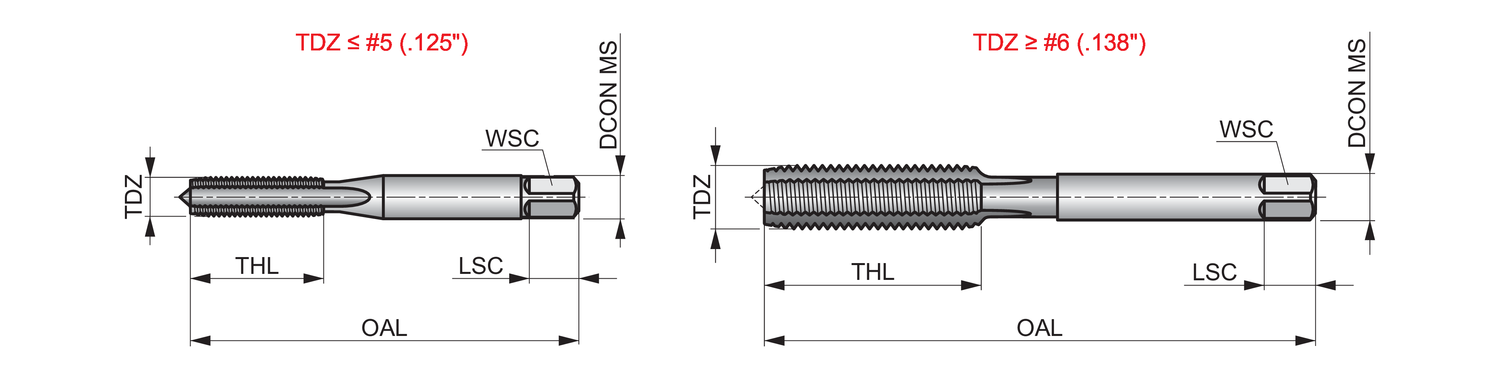

Clamping width - fractional inch (WSC)
0.141
Clamping width - inch
0.11
Coating
Bright
Coating property (CTP)
2
Connection diameter - inch (DCON MS)
1.5/8
Connection diameter - millimeter (DCON MS)
3.58
Flute count (NOF)
2
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
1.5/8
Overall length - inch (OAL)
1.625
Shank
Cylindrical shank with Square
Thread form (THFT)
UNF - Unified Fine
Threading length - fractional inch (THL)
5/16
Threads per inch (TPI)
80
Tolerance limit
H1
Usable length (ULDR)
1.5
Set of straight flute hand taps for Unified National Fine thread UNF 0 with 80 TPI and 3B class of fit with H1 pitch diameter limits, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ANSI standard with 0.1410" shank and 0.1100" square drive, HSS with bright finish for 1.5xD through or blind hole threading in general purpose applications.
