1534NR5-40H2NO2 6007537 Non-Relieved Style Tap UNC No.5 x 40
MODEL 6007537
$6.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

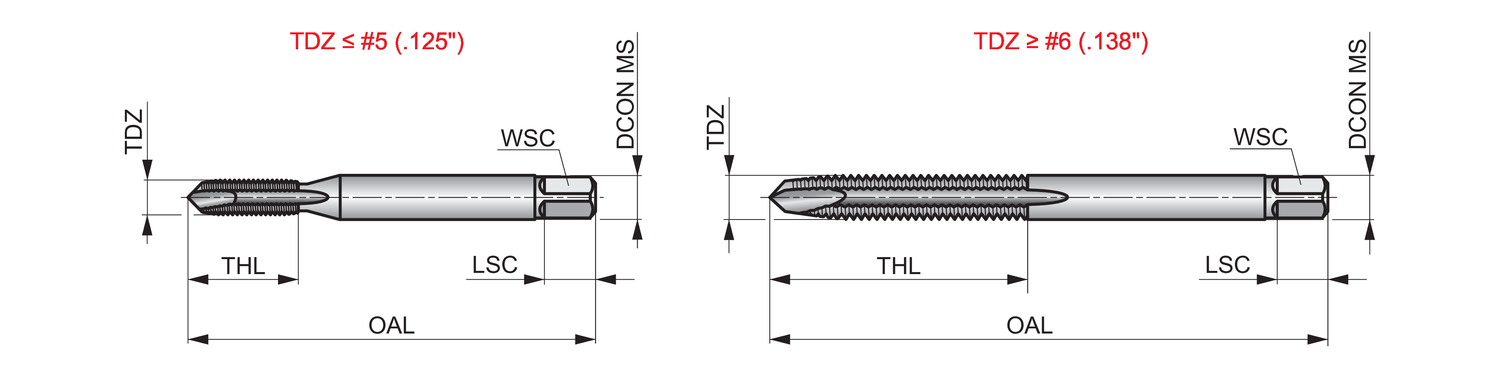

Clamping width - inch
0.11
Coating
Bright
Connection diameter - inch (DCON MS)
0.141
Connection diameter - millimeter (DCON MS)
3.58
Flute count (NOF)
2
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - millimeter (OAL)
0.141
Overall length - fractional inch (OAL)
1.15/16
Overall length - inch (OAL)
1.9375
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
5
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
5/8
Threads per inch (TPI)
40
Tolerance limit
H2
Usable length (ULDR)
2.5
Spiral point tap NO2 with a 4-6xP plug lead, for Unified National Coarse thread UNC 5 with 40 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1410" shank and 0.1100" square drive, HSS with bright finish for 2.5xD through hole threading in steel and cast steel.
