1534NR8-36H2NO2 6006877 Non-Relieved Style Tap UNF No.8 x 36
MODEL 6006877
$6.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

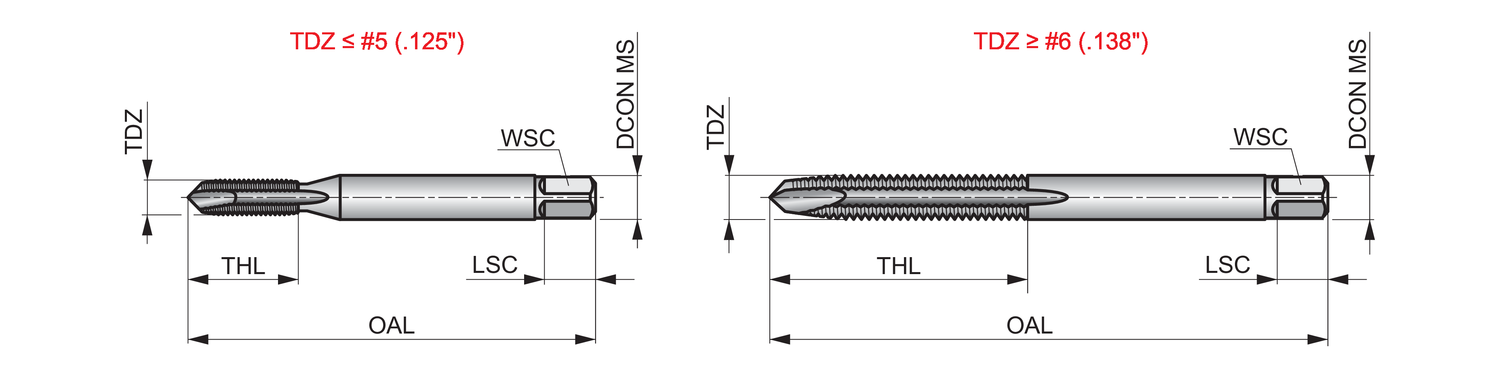

Clamping width - inch
0.131
Coating
Bright
Connection diameter - inch (DCON MS)
0.168
Connection diameter - millimeter (DCON MS)
4.27
Flute count (NOF)
2
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - millimeter (OAL)
0.168
Overall length - fractional inch (OAL)
2.1/8
Overall length - inch (OAL)
2.125
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
8
Thread form (THFT)
UNF - Unified Fine
Threading length - fractional inch (THL)
3/4
Threads per inch (TPI)
36
Tolerance limit
H2
Usable length (ULDR)
2.5
Spiral point tap NO2 with a 4-6xP plug lead, for Unified National Fine thread UNF 8 with 36 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1680" shank and 0.1310" square drive, HSS with bright finish for 2.5xD through hole threading in steel and cast steel.
