15441/4X18 6007170 NPT Pipe Tap 4FL 1/4 inch x 18
MODEL 6007170
$22.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
~ANSI B94.9

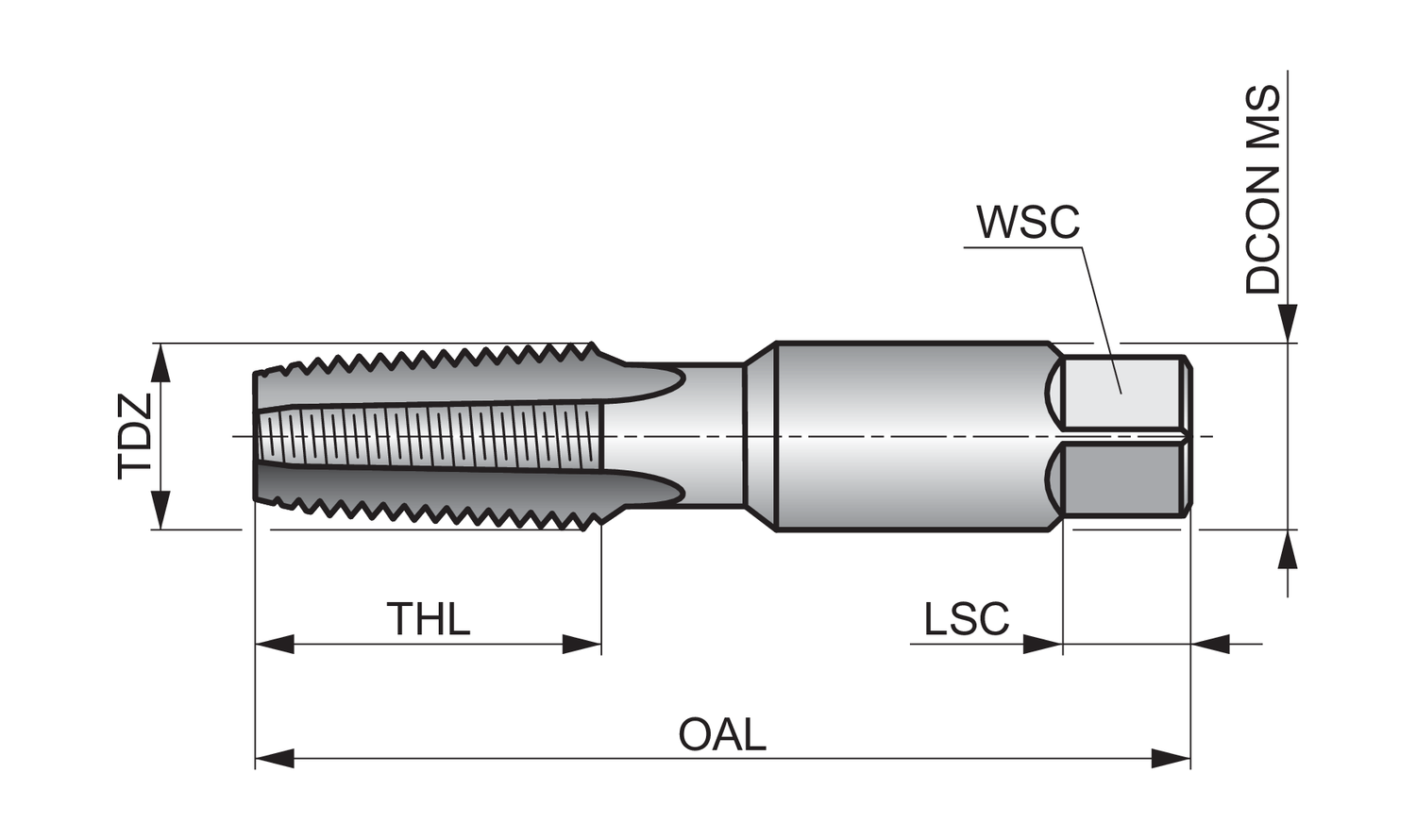

Clamping width - inch
0.421
Coating
Nitride
Connection diameter - inch (DCON MS)
0.563
Connection diameter - millimeter (DCON MS)
14.3
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
2.7/16
Overall length - inch (OAL)
2.4375
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
1/4
Thread form (THFT)
NPT - National taper pipe
Threading length - fractional inch (THL)
1.1/16
Threads per inch (TPI)
18
Usable length (ULDR)
1.5
Straight flute tap with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 1/4" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 0.5630" shank and 0.4210" square drive, HSS with nitride surface finish for 1.5xD through or blind hole threading in alloy steel.
