Image for Illustration purposes only. Actual product may vary
15671/8X27 6006885 NPTF Pipe Tap 5FL 1/8 inch x 27
MODEL 6006885
$29.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

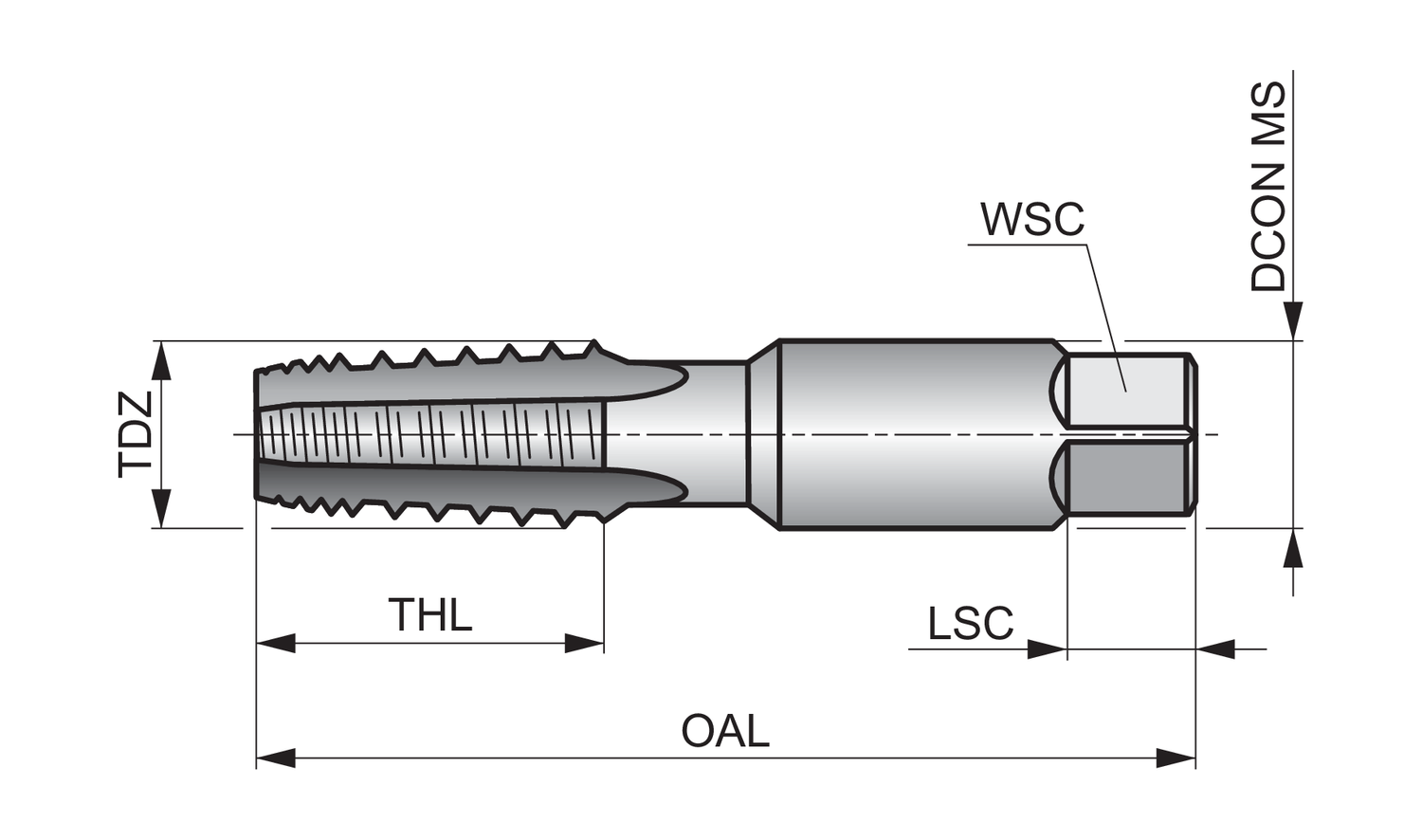

Clamping width - inch
0.328
Coating
Bright
Connection diameter - inch (DCON MS)
0.438
Connection diameter - millimeter (DCON MS)
11.13
Flute count (NOF)
5
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
2.1/8
Overall length - inch (OAL)
2.125
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
1/8
Thread form (THFT)
NPTF - National taper pipe dryseal
Threading length - fractional inch (THL)
3/4
Threads per inch (TPI)
27
Usable length (ULDR)
2
Straight flute tap with a 2-3xP semi-bottoming lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 1/8" with 27 TPI and Normal class of fit, dimensions according to ANSI standard with 0.4380" shank and 0.3280" square drive, HSS with bright finish for 2xD through or blind hole threading in alloy steel.
