15721/2X13H3NO2 6006918 UND Hand Tap Screw Thread Insert 1/2 inch x 13
MODEL 6006918
$33.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

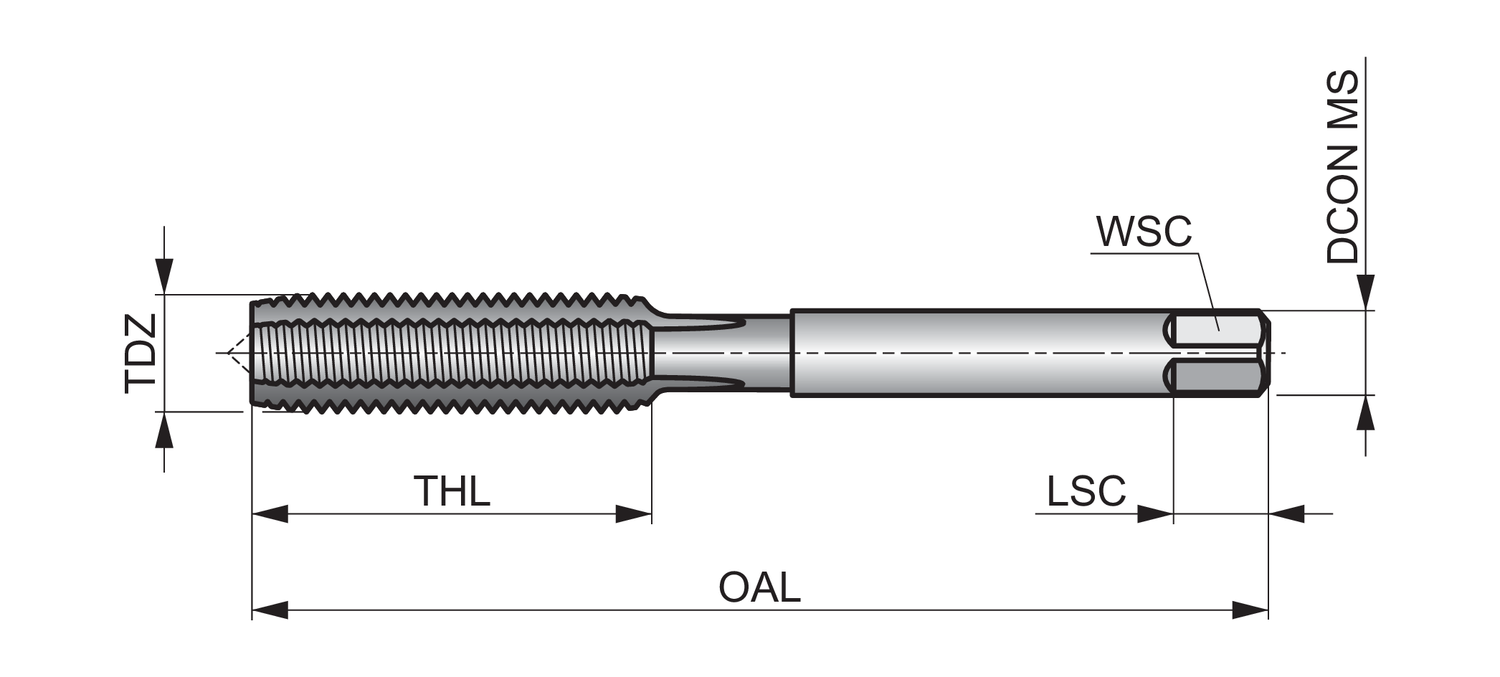

Clamping width - inch
0.36
Coating
Bright
Connection diameter - inch (DCON MS)
0.48
Connection diameter - millimeter (DCON MS)
12.19
Flute count (NOF)
4
Flute Geometry (FDC)
Straight Flute Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - fractional inch (OAL)
3.13/16
Overall length - inch (OAL)
3.8125
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
1/2
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
1.13/16
Threads per inch (TPI)
13
Tolerance limit
H3
Usable length (ULDR)
1.5
Straight flute hand tap NO2 with a 4-6xP plug lead, for Unified National Coarse thread UNC 1/2" with 13 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4800" shank and 0.3600" square drive, HSS with bright finish for 1.5xD through or blind hole threading in wrought or cast aluminium and copper or copper alloys.
| Brand | Pramet |
| Model | 7317934 |
