6007680

Image for Illustration purposes only. Actual product may vary

15828-32NO3 6007680 UNC Machine Tap No.8 x 32

MODEL 6007680

BRAND

Union Butterfield

SKU

6090971

WEIGHT

0.002 lb

UOM

each

$9.39 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI

Clamping width - inch

0.131

Coating

Bright

Connection diameter - inch (DCON MS)

0.168

Connection diameter - millimeter (DCON MS)

4.27

Flute count (NOF)

2

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

30

Hand (Cutting direction)

Right

Material

HSS

Overall length - millimeter (OAL)

0.168

Overall length - fractional inch (OAL)

2.1/8

Overall length - inch (OAL)

2.125

Premachined hole diameter - millimeter (PHD)

30

Shank

Cylindrical shank with Square

Thread diameter size (TDZ)

8

Thread form (THFT)

UNC - Unified Coarse

Threading length - fractional inch (THL)

3/4

Threads per inch (TPI)

32

Tolerance limit

H3

Usable length (ULDR)

2.5

Spiral flute tap NO3 with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1680" shank and 0.1310" square drive, HSS with bright finish and 30° helix angle for 2.5xD blind hole threading in general purpose applications.

Catalog

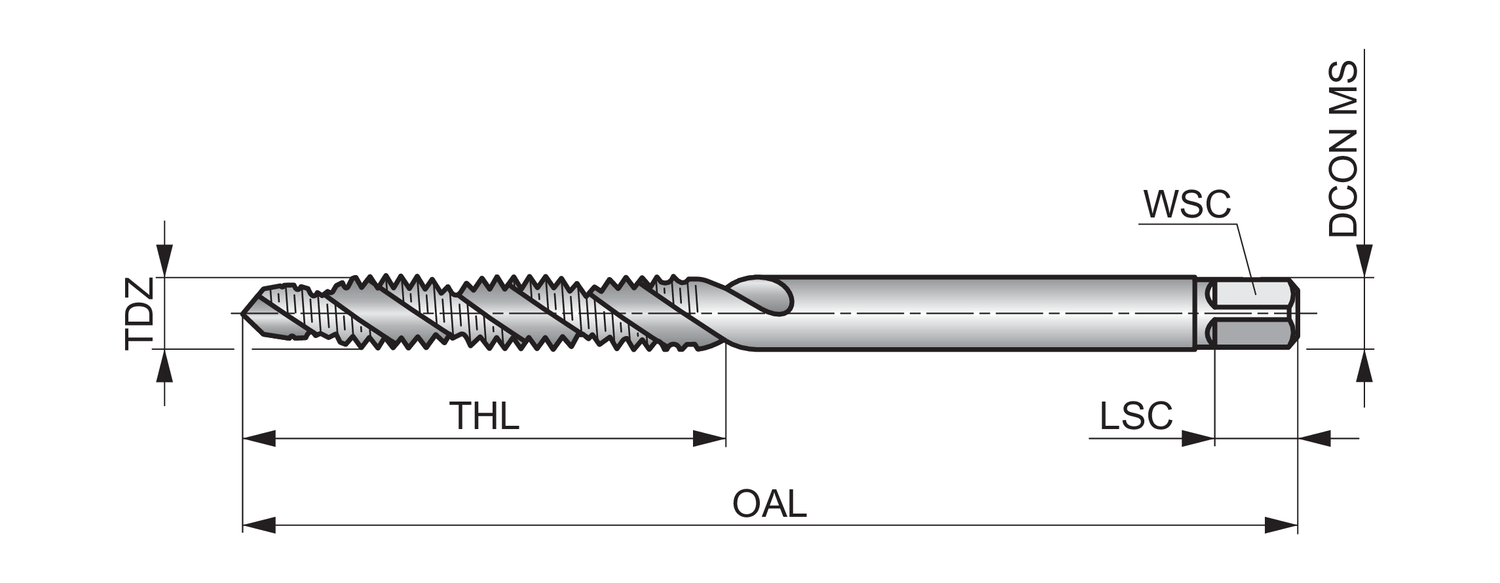

Line Drawing
