159310-32 6007866 Relieved Style Tap UNF No.10 x 32
MODEL 6007866
OBSOLETE
Please call 888-671-2883 for Replacement info
Typically Ships in: 1 day
Returnable:No
California Prop 65 warningBasic Standard
ANSI
Clamping width - inch
0.152
Coating
Bright
Connection diameter - inch (DCON MS)
0.194
Connection diameter - millimeter (DCON MS)
4.93
Flute count (NOF)
2
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS
Overall length - millimeter (OAL)
0.194
Overall length - fractional inch (OAL)
2.3/8
Overall length - inch (OAL)
2.375
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
10
Thread form (THFT)
UNF - Unified Fine
Threading length - fractional inch (THL)
7/8
Threads per inch (TPI)
32
Tolerance limit
H7
Usable length (ULDR)
2.5

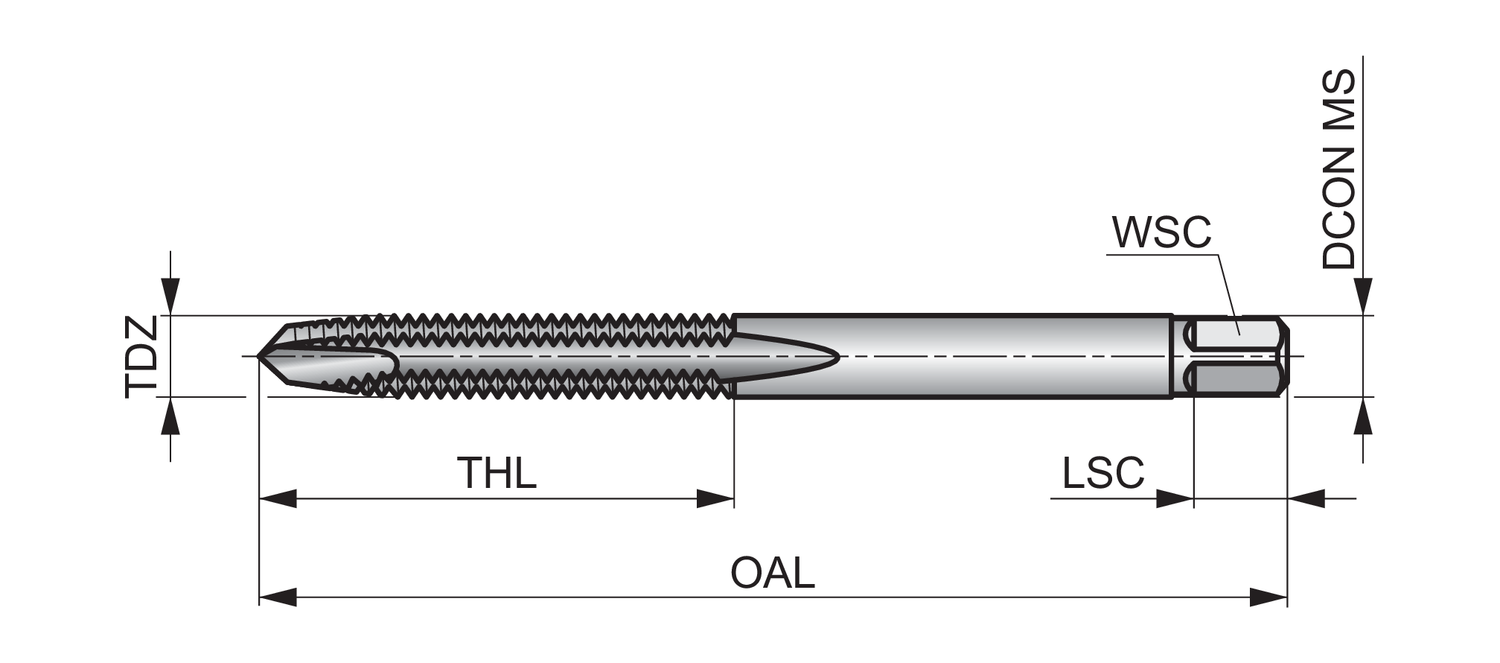

Spiral point tap with a 3-6xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 0.003" class of fit with H7 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, HSS with bright finish for 2.5xD through hole threading in steel and cast steel.
