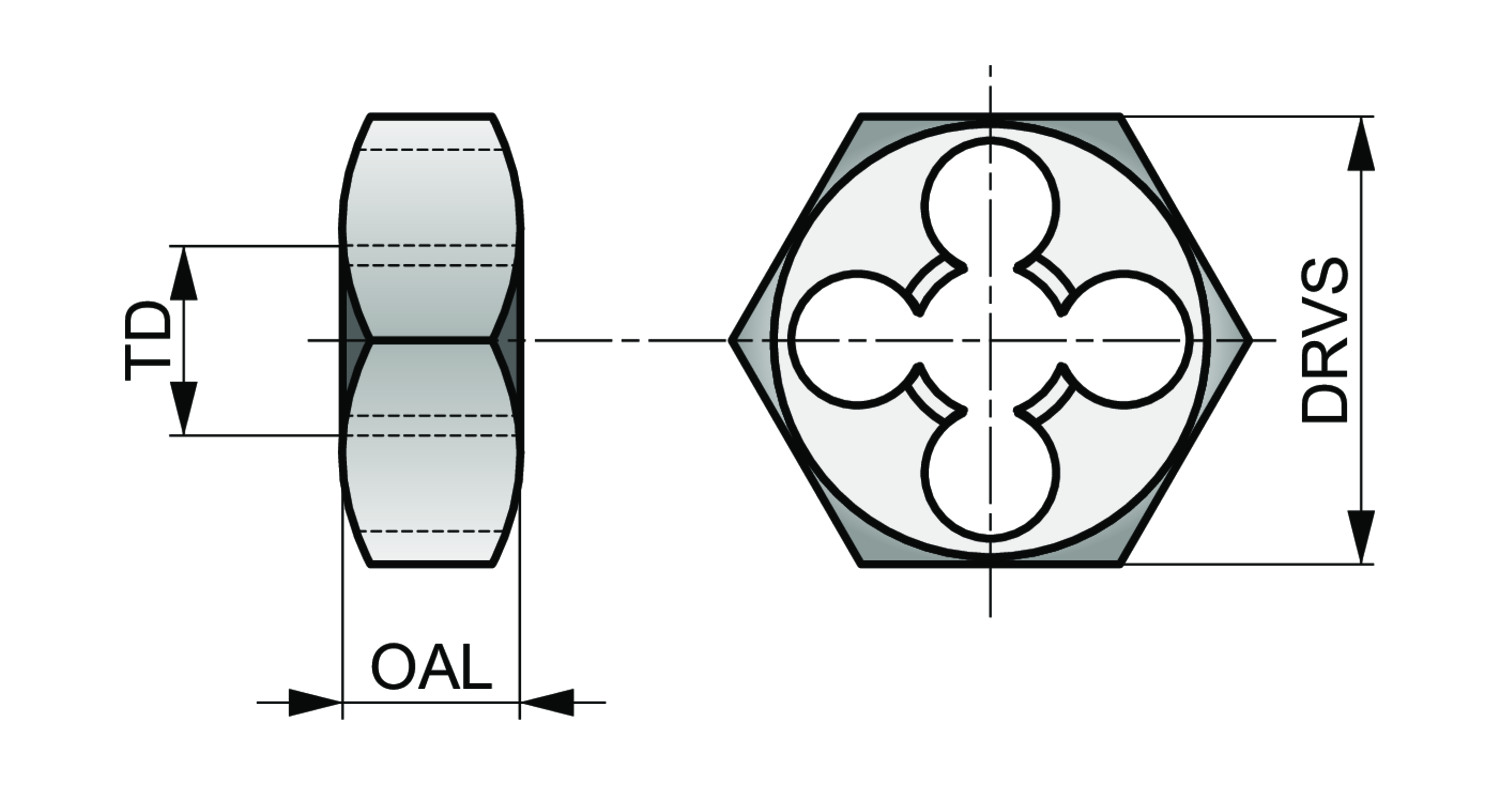

Image for Illustration purposes only. Actual product may vary
2325M9X1.25 6009202 Chromium Steel Dienut ANSI M9 x1.25 mm
MODEL 6009202
$19.74 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ANSI
Coating
Bright
Drive size - inch (DRVS)
1
Drive size - millimeter (DRVS)
25.4
Hand (Cutting direction)
Right
Material
Chromium steel
Overall length - fractional inch (OAL)
3/8
Overall length - millimeter (OAL)
9.53
Thread diameter size (TDZ)
9
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
1.25
Hexagon die nut, for ISO-Metric thread M9 with 1.25 mm pitch, dimensions according to ANSI standard with 25/32" width across flat and 3/8" thickness, made from chromium tool steel with bright finish for repairing damaged thread in free machining and plain carbon steel and gray, malleable, ductile and compacted graphite cast-iron.
