TN153410-24 6006759 Relieved Style Tap UNC No.10 x 24
MODEL 6006759
$9.14 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

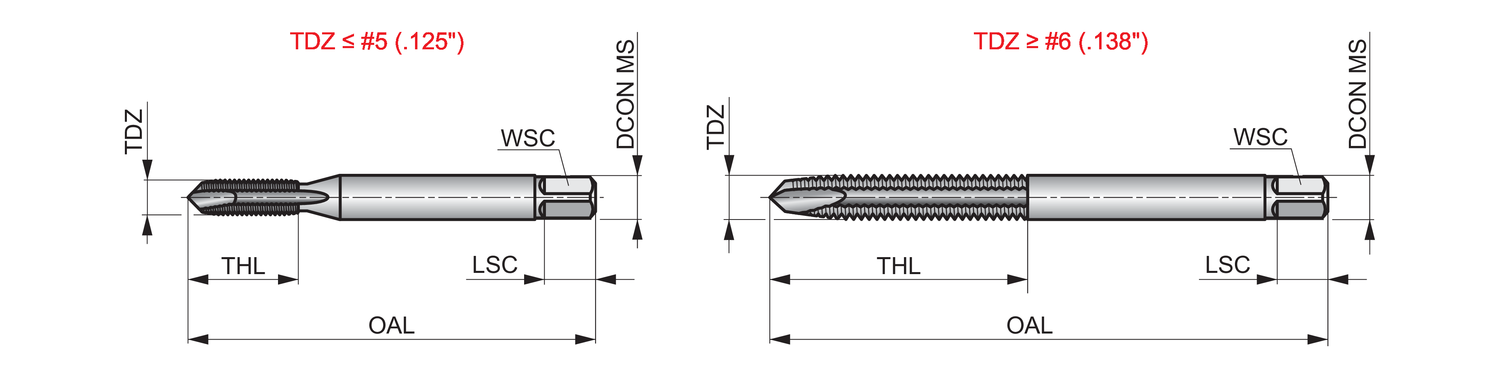

Clamping width - inch
0.152
Coating
TiN
Connection diameter - inch (DCON MS)
0.194
Connection diameter - millimeter (DCON MS)
4.93
Flute count (NOF)
2
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
2.3/8
Overall length - inch (OAL)
2.375
Overall length - millimeter (OAL)
60.33
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
10
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
7/8
Threads per inch (TPI)
24
Tolerance limit
H3
Usable length (ULDR)
2.5
Spiral point tap with a 3-6xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, HSS with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel, non-ferrous metals and Fe-based, Ni-based and Co-based high-temperature alloys.
