TN15853/8-16H53FL 6007432 Relieved Style Tap UNC 3/8 inch x 16
MODEL 6007432
$18.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

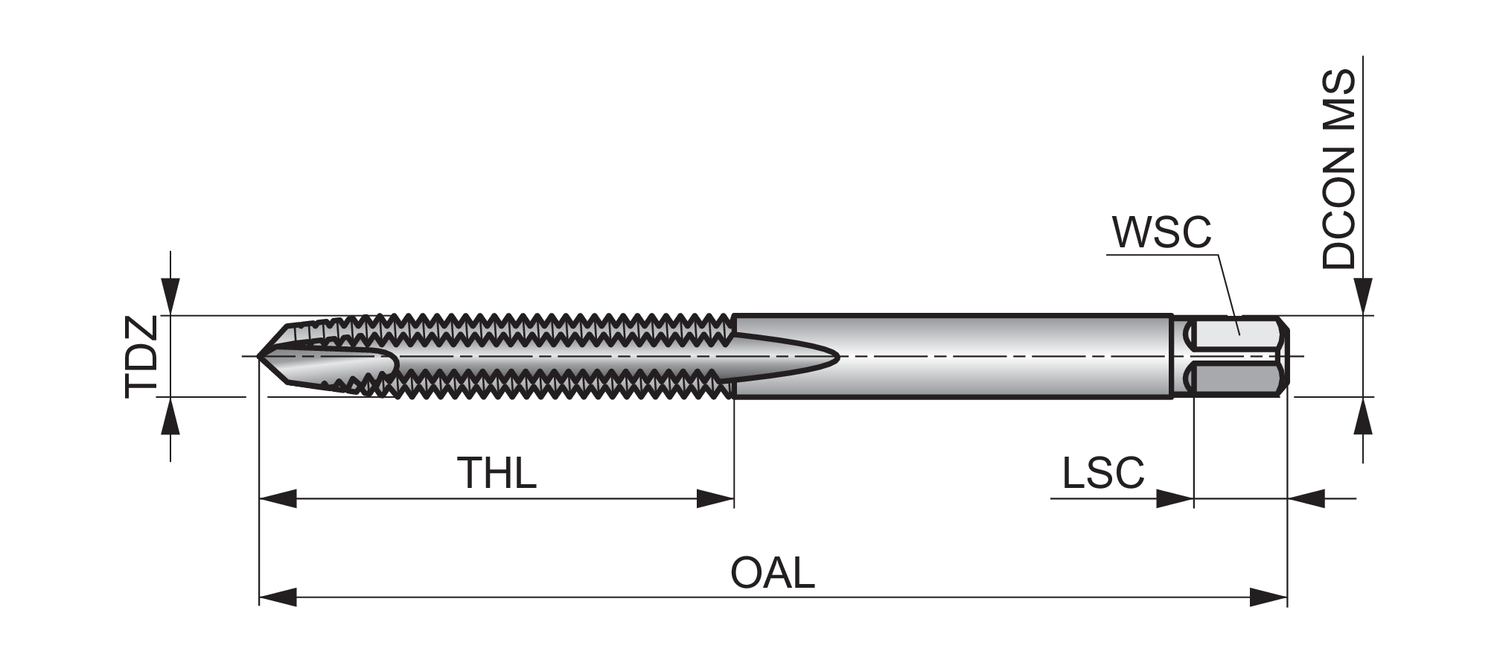

Clamping width - fractional inch (WSC)
7/16
Clamping width - inch
0.286
Coating
TiN
Connection diameter - inch (DCON MS)
0.286
Connection diameter - millimeter (DCON MS)
7.26
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
2.15/16
Overall length - inch (OAL)
2.9375
Overall length - millimeter (OAL)
74.61
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
3/8
Thread form (THFT)
UNC - Unified Coarse
Threading length - fractional inch (THL)
1.1/4
Threads per inch (TPI)
16
Tolerance limit
H5
Usable length (ULDR)
2.5
Spiral point tap with a 3-6xP plug lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, HSS with TiN coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel, non-ferrous metals and Fe-based, Ni-based and Co-based high-temperature alloys.
