TN1785M12 6007480 Relieved Style Tap M12 x1.75 mm
MODEL 6007480
$28.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

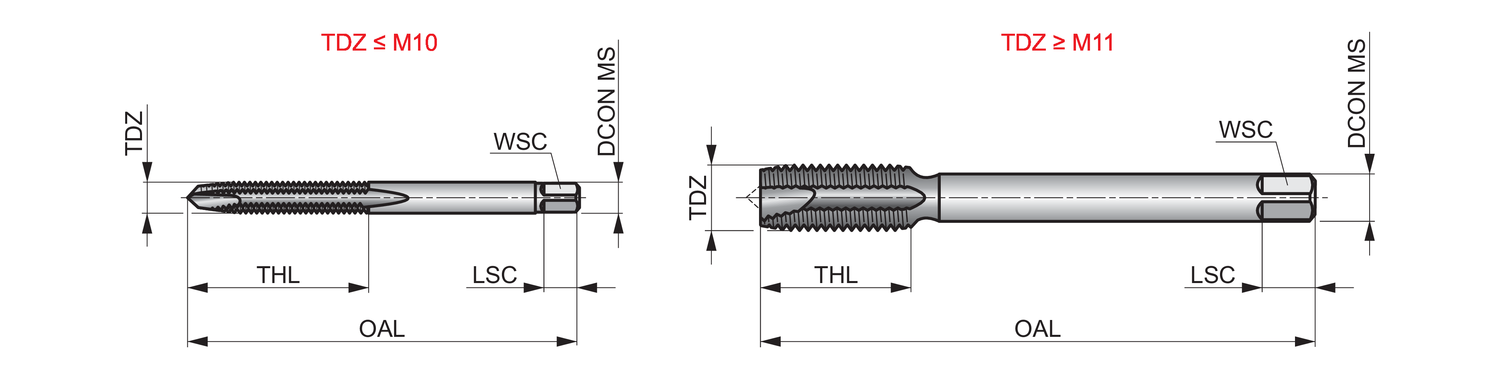

Clamping width - fractional inch (WSC)
7/16
Clamping width - inch
0.275
Coating
TiN
Connection diameter - inch (DCON MS)
0.275
Connection diameter - millimeter (DCON MS)
6.99
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
3.3/8
Overall length - inch (OAL)
3.375
Overall length - millimeter (OAL)
85.73
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
M12
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.0689
Thread pitch - millimeter (TP)
1.75
Threading length - fractional inch (THL)
1.21/32
Tolerance limit
D6
Usable length (ULDR)
2.5
Spiral point tap with a 3-6xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to ANSI standard with 0.3670" shank and 0.2750" square drive, HSS with TiN coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel, non-ferrous metals and Fe-based, Ni-based and Co-based high-temperature alloys.
