TN1785M4 6007488 Relieved Style Tap M4 x0.70 mm
MODEL 6007488
$14.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI

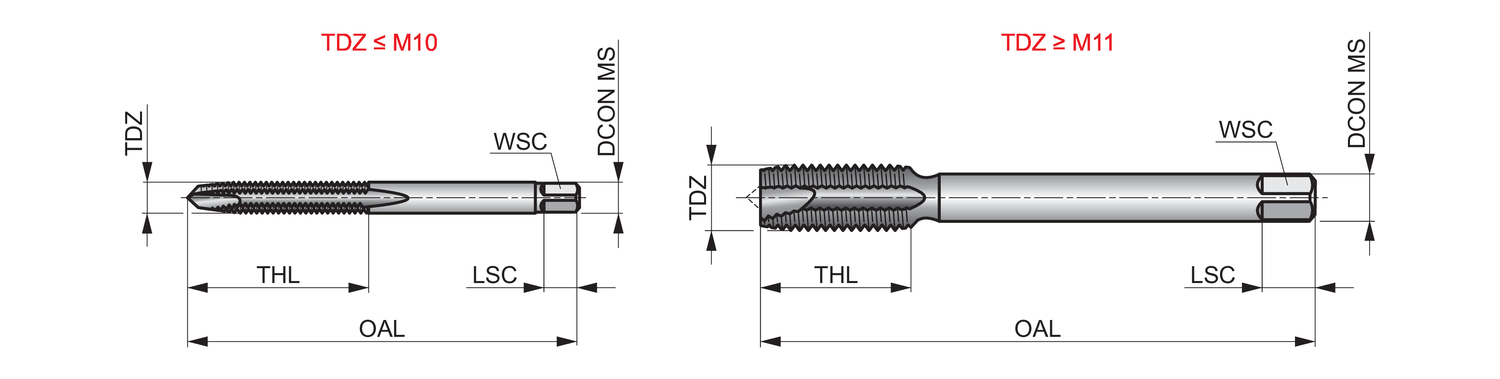

Clamping width - fractional inch (WSC)
1/4
Clamping width - inch
0.131
Coating
TiN
Connection diameter - inch (DCON MS)
0.131
Connection diameter - millimeter (DCON MS)
3.33
Flute count (NOF)
2
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material code (BMC)
HSS
Overall length - fractional inch (OAL)
2.1/8
Overall length - inch (OAL)
2.125
Overall length - millimeter (OAL)
53.98
Shank
Cylindrical shank with Square
Thread diameter size (TDZ)
M4
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.0276
Thread pitch - millimeter (TP)
0.7
Threading length - fractional inch (THL)
3/4
Tolerance limit
D4
Usable length (ULDR)
2.5
Spiral point tap with a 3-6xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to ANSI standard with 0.1680" shank and 0.1310" square drive, HSS with TiN coating for 2.5xD through hole threading in ferritic, martensitic and austenitic stainless steel, non-ferrous metals and Fe-based, Ni-based and Co-based high-temperature alloys.
